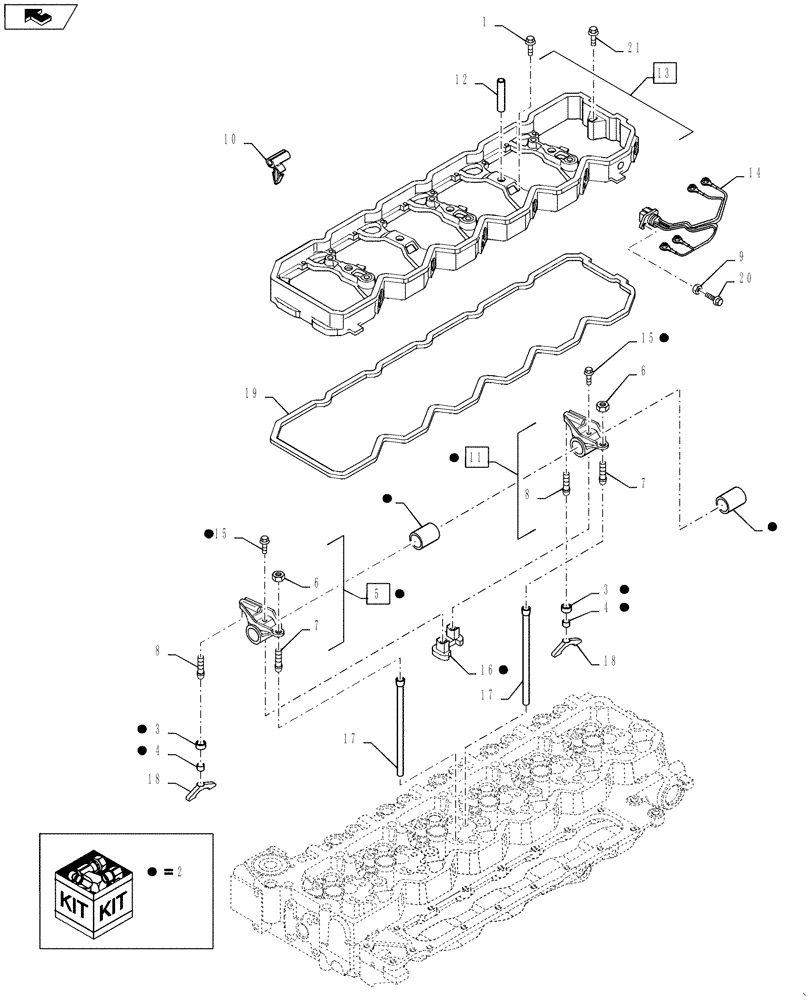

Запчасти Case IH 3330 (10.106.01) - CYLINDER HEAD - VALVE MECHANISM (10) - ENGINE

1

4895432

SCREW,M8 x 1.25 x 70mm

M8 x 1.25 x 70

5шт.

2

2856458

ROCKER ARM

6шт.

3

4897248

RETAINER

2шт.

4

4894816

SHAFT

2шт.

5

4895068

ROCKER ARM

1шт.

Includes ref. 6, 7, 8

1шт.

6

4895198

NUT,3/8"-24, Heavy

2шт.

7

2830222

ADJUSTMENT SCREW,Hdls Hex Skt, 3/8" - 24 x 23.85mm

2шт.

8

4895065

SPACER

2шт.

9

2852776

WASHER,6mm ID x 11mm OD

3шт.

10

2852428

WIRE CLAMP,6mm ID

6шт.

11

4895067

ROCKER ARM

1шт.

Includes ref. 6, 7, 8

1шт.

12

4899245

SLEEVE,9mm ID x 13.9mm OD x 55.25mm L

5шт.

13

4899257

HOUSING

SPACER, ROCKER LEVER

1шт.

Includes ref. 12

1шт.

14

2852427

WIRE HARNESS

3шт.

15

4899083

SCREW

2шт.

16

4893487

LEVER

1шт.

17

4895031

PUSH ROD

12шт.

18

2854530

BRIDGE

12шт.

19

2853788

GASKET,10.35mm Thk

1шт.

20

2852602

HEX SOC SCREW,M6 x 16mm

M6 X 16

3шт.

21

4899089

SCREW,Hex Flg, M8 x 1.25 x 50

2шт.
