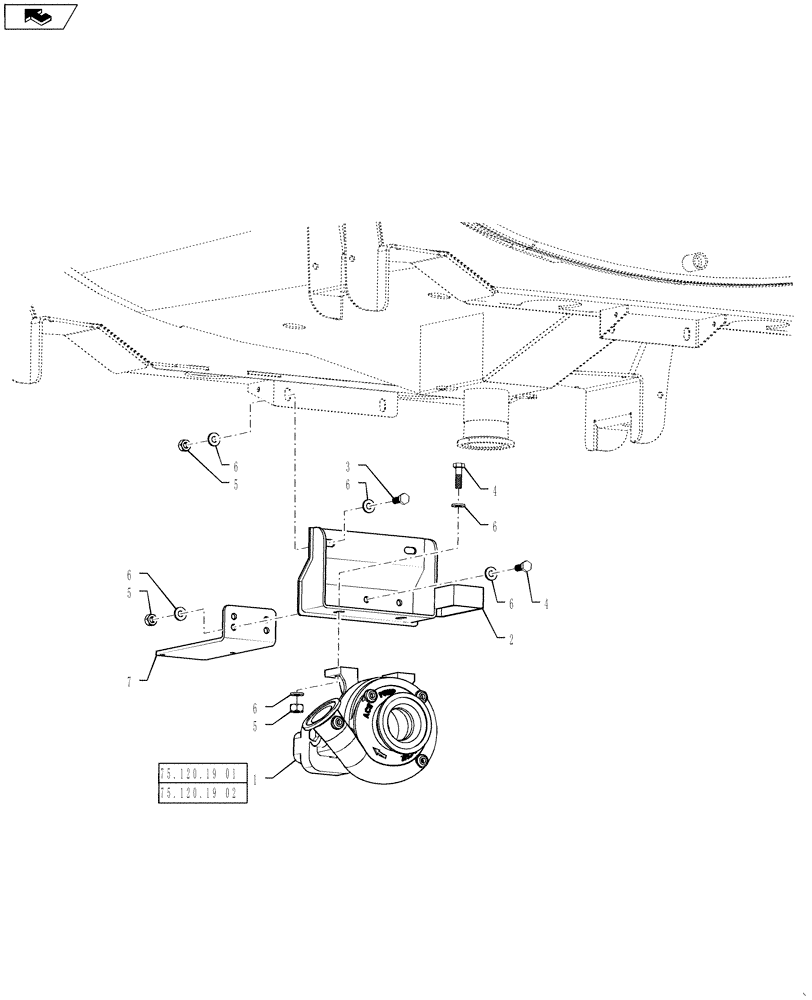

Запчасти Case IH 3330 (75.120.18) - PUMP MOUNTING, GROUP (75) - SOIL PREPARATION

1

87269948

PUMP

Product, FMCSC-200F-HYD-, Serial Range: -YAT028001

1шт.

84319987R

REMAN-WATER PUMP

3330 Serial Range : YAT028001 (11/08-) Reman For New P/N 87269948

1шт.

84319987C

CORE-WATER PUMP

Return Number

1шт.

Refer to 75.120.19(01)

1шт.

1

84319987

PUMP,11.49 CC

Water, Product, Start Serial: YAT028002

1шт.

84319987R

REMAN-WATER PUMP

3330 (11/08-) SERIAL : YAT028002

1шт.

84319987C

CORE-WATER PUMP

Return Number

1шт.

Refer To 75.120.19(02)

1шт.

2

87270086

MOUNTING PLATE

PRODUCT PUMP

1шт.

3

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

4

86980402

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

5

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

6шт.

6

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

12шт.

7

87271109

MOUNTING PLATE

PRODUCT VALVE

1шт.
