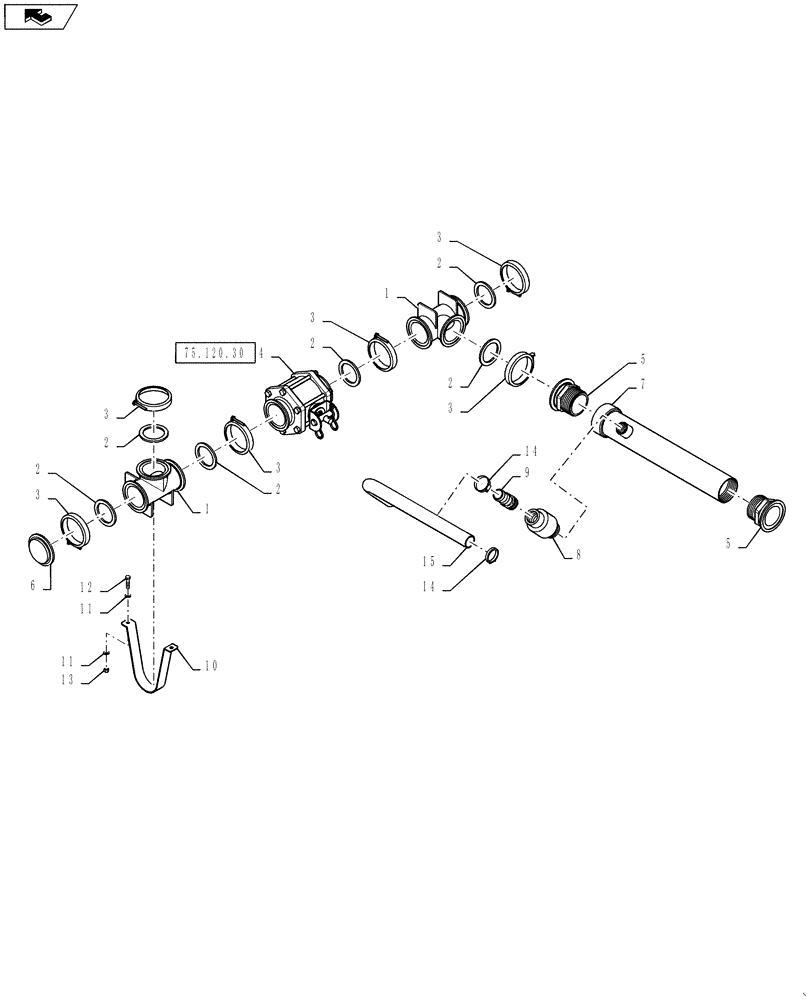

Запчасти Case IH 3330 (75.120.16) - PLUMBING SUMP (75) - SOIL PREPARATION

1

BN321071

FITTING,3" Flange x 3" Hose Barb Tee

Manifold, 3"

2шт.

2

BN321073

GASKET,3" Flange, EPDM

Manifold, 3"

6шт.

3

BN321074

CLAMP,101.6mm

Manifold, 3"

6шт.

4

BN322929

VALVE

3" Manifold Ball

1шт.

Refer to 75.120.30

1шт.

5

BN321078

ADAPTER

Manifold, 3" x 3" Male

2шт.

6

BN321079

PLUG,3" Flange

Manifold, 3"

1шт.

7

87730318

TUBE,627 mm L

3" FILL

1шт.

8

BN24567

CHECK VALVE

1 1/4" NPT

1шт.

9

BN2294412

FITTING

Hosebarb, 1.25 NPT x 1.50 HB

1шт.

10

86986136

STRAP

SUMP TEE, LONG

1шт.

11

BN50146

WASHER,3/8", Stainless

4шт.

12

BN50260

BOLT,3/8"-16 x 1-1/2", Stainless Steel

2шт.

13

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

14

BN310448

HOSE CLAMP

#28, Stainless Steel

2шт.

15

BN53842

HOSE,38.10 mm ID Bulk

Discharge

3.0шт.
