(10.105.02) - PISTONS

Запчасти Case IH 3330 (10.105.02) - PISTONS (10) - ENGINE

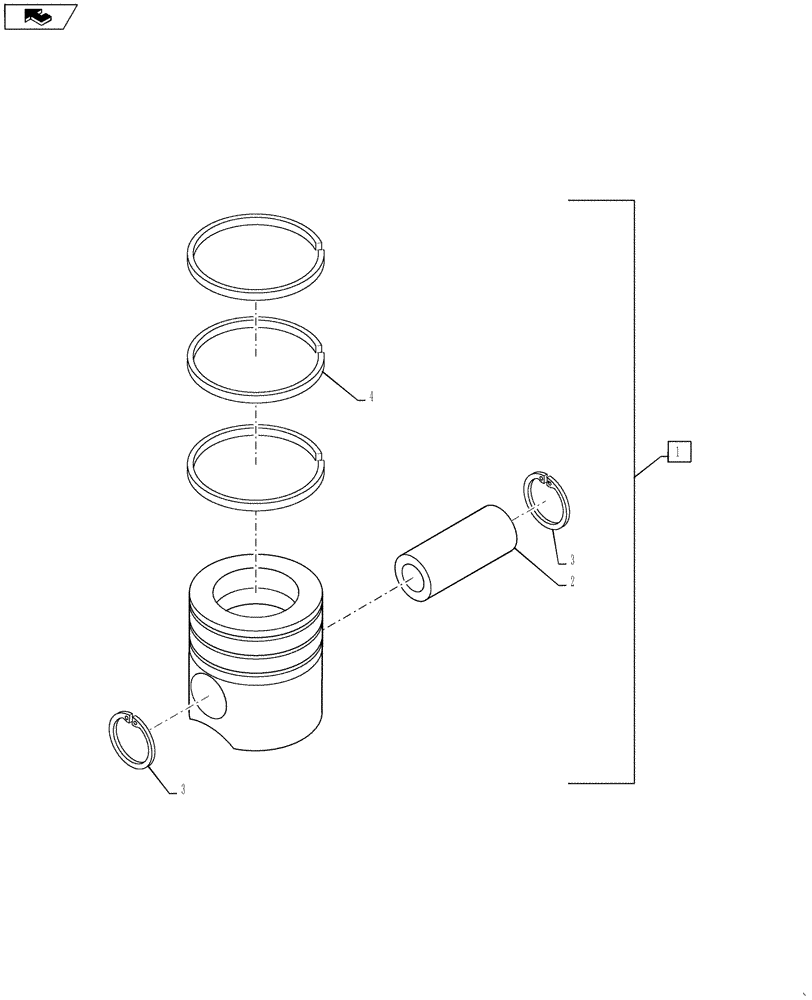

Схема запчастей Case IH 3330 - (10.105.02) - PISTONS (10) - ENGINE
1
4
2
3
home
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

8094846

PISTON ASSY

6шт.

Includes ref 1-4

1шт.

2

NSS

NOT SOLD SEPARAT

PISTON

6шт.

3

NSS

NOT SOLD SEPARAT

PIN, PISTON

1шт.

4

NSS

NOT SOLD SEPARAT

RING, LOCKING

2шт.

5

NSS

NOT SOLD SEPARAT

RING, LOCKING

2шт.

6

NSS

NOT SOLD SEPARAT

RING, PISTON, SEALING

1шт.

7

NSS

NOT SOLD SEPARAT

RING, PISTON

1шт.

8

NSS

NOT SOLD SEPARAT

RING, OIL SCRAPER

1шт.

9

87616297

PISTON & RINGS KIT

Piston, Pin, Retainer, & Ring, Standard

1шт.

9

87582046

PISTON & RINGS KIT

Piston, Pin, Retainer, & Ring, Oversize 0.4 mm

1шт.

9

87582047

PISTON & RINGS KIT

Piston, Pin, Retainer, & Ring, Oversize 0.8 mm

1шт.

9

87582179

PISTON RINGS KIT

Standard

1шт.

9

87582180

PISTON RINGS KIT

Oversize 0.4 mm

1шт.

9

87582181

PISTON RINGS KIT

Oversize 0.8 mm

1шт.
