(75.110.06) - RINSE VALVE, GROUP

Запчасти Case IH 3330 (75.110.06) - RINSE VALVE, GROUP (75) - SOIL PREPARATION

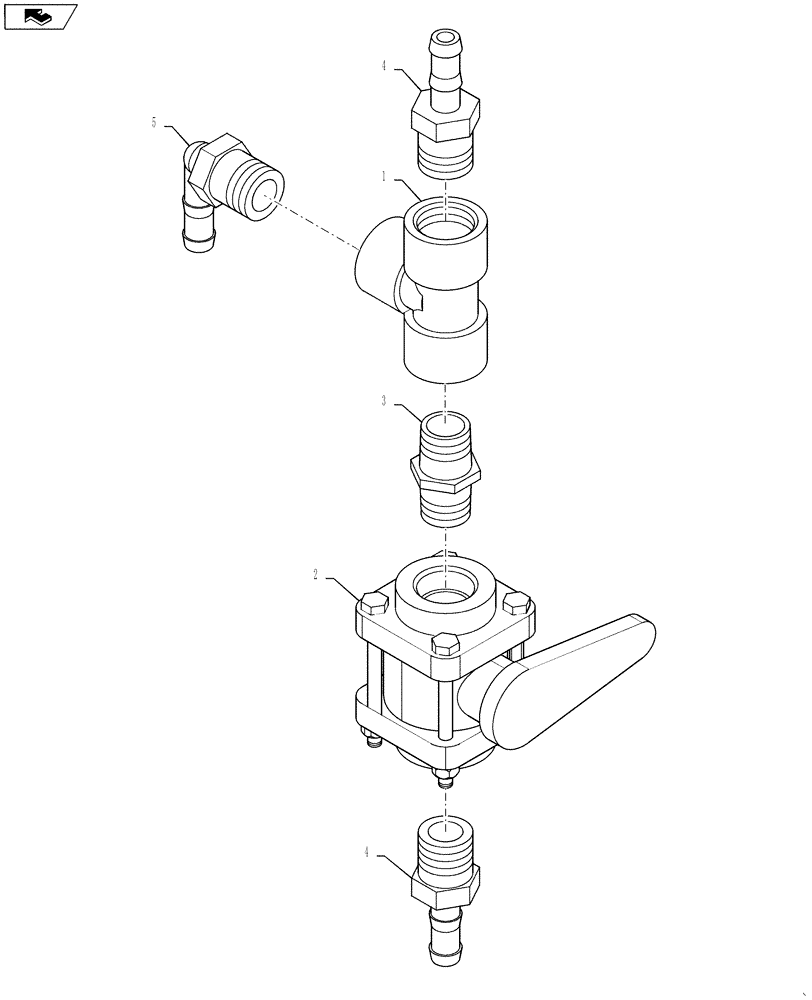

Схема запчастей Case IH 3330 - (75.110.06) - RINSE VALVE, GROUP (75) - SOIL PREPARATION
1
2
4
4
5
home
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN73560

TEE

.75FP, PP

1шт.

2

BN73564

VALVE

3/4" Ball Poly 2 Way, Full, PP

1шт.

3

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short Pipe, Poly

1шт.

4

BN73568

FITTING

3/4" NPT x 1/2" Hose Barb, Poly

2шт.

5

BN73578

FITTING

3/4" NPT x 1/2" Hose Barb, Poly

1шт.
