Запчасти Case IH 3330 (75.110.05) - VENTURI ASSEMBLY (75) - SOIL PREPARATION

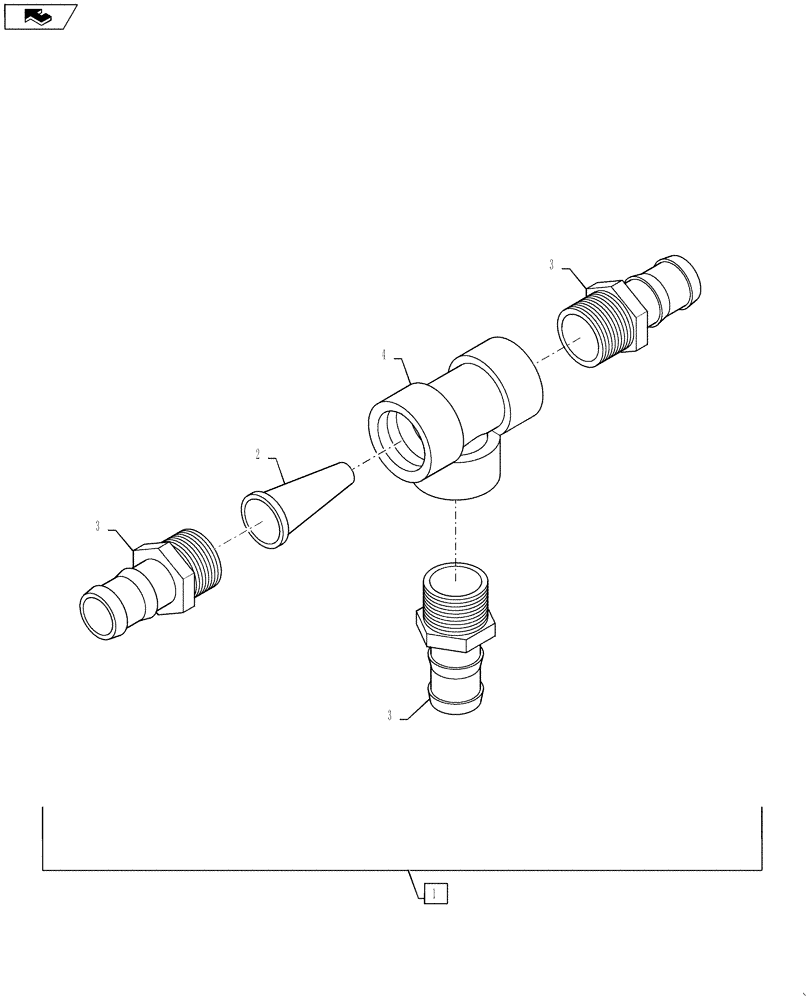

Схема запчастей Case IH 3330 - (75.110.05) - VENTURI ASSEMBLY (75) - SOIL PREPARATION
home
3
3
4
3
2
1

Артикул

Название

Примечание

Количество

1

87270968

VENTURI

Assembly

1шт.

2

21384

VENTURI

1 1/2"

1шт.

3

413083A1

PIPE FITTING,1-1/2" Male Thread x 1-1/2" Hose Barb

Hose Barb, 1 1/2"

3шт.

4

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, Poly

1шт.

Выбрано товаров: 4
