(55.440.37) - HARNESS GROUP, 7 SECTION, 120’

Запчасти Case IH 3330 (55.440.37) - HARNESS GROUP, 7 SECTION, 120’ (55) - ELECTRICAL SYSTEMS

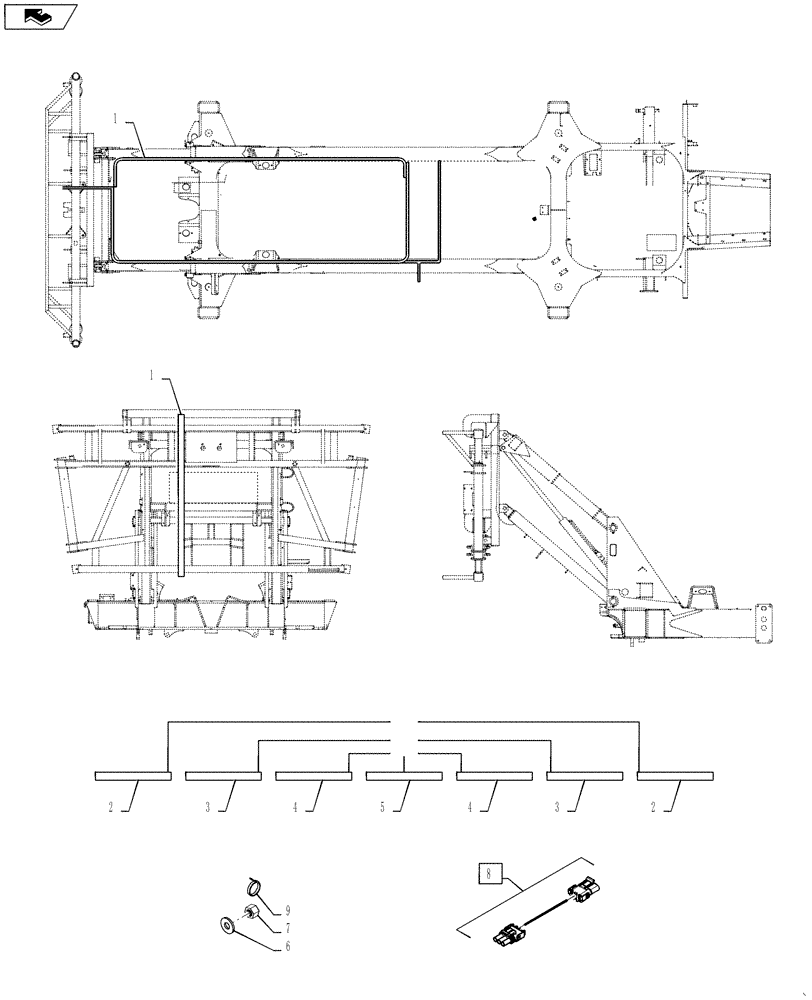

Схема запчастей Case IH 3330 - (55.440.37) - HARNESS GROUP, 7 SECTION, 120’ (55) - ELECTRICAL SYSTEMS
6
8
3
4
3
7
home
2
5
4
2
9
1
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87627648

HARNESS

AIM CMD, 7 SECTS

1шт.

2

87627642

HARNESS

Aim Command Harness, Section 1 And 7, Outer Section, 120' Boom

2шт.

3

87627643

HARNESS

Aim Command Harness, Section 2 And 6, Mid Section, 120' Boom

2шт.

4

87627644

HARNESS

Aim Command Harness, Section 3 And 5, Inner Section, 120' Boom

2шт.

5

87627645

HARNESS

Aim Command Harness, Section 4, Center Section, 120' Boom

1шт.

6

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

7

353308

NUT,M6 x 1.0, Cl 8

2шт.

8

BN316014

HARNESS

Nozzle Alternator

3шт.
