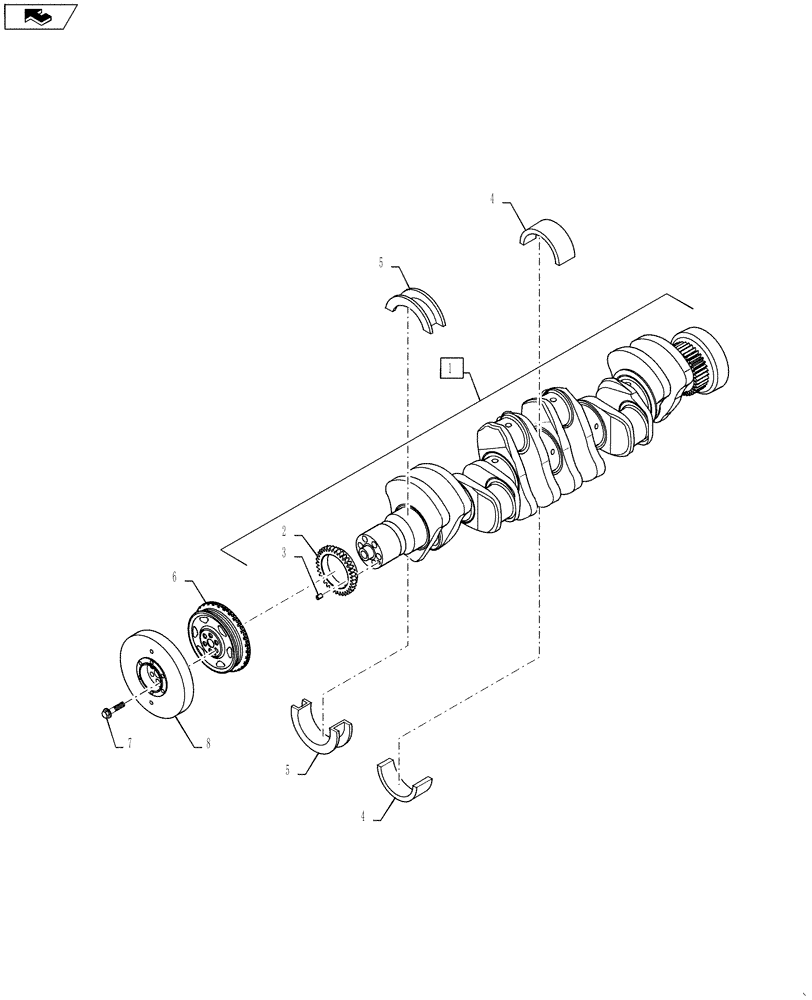

Запчасти Case IH 3330 (10.103.02) - CRANKSHAFT & PULLEY (10) - ENGINE

1

2852305

CRANKSHAFT

1шт.

Includes ref. 2, 3

1шт.

1

2852306R

REMAN-CRANKSHAFT

1шт.

1

2852306C

CORE-CRANKSHAFT

Return Number

1шт.

2

4893386

GEAR,36 T

1шт.

3

4899046

DOWEL,M6 x 9 L

1шт.

4

2995787

SET OF STD MAIN BRGS

6шт.

Inludes 2 bearing halves

1шт.

5

2992153

CAP

1шт.

Includes 2 halves

1шт.

6

4896773

PULLEY

Crankshaft

1шт.

7

4892867

CAPTIVE WASHER SCREW,Phillips Drive, Oval HD, M12 x 1.25 x 78.5mm, Cl 10.9

6шт.

8

2854847

DAMPER

1шт.

9

84144522

THRUST BEARING

Thrust, Standard

1шт.

9

84144523

THRUST BEARING

Thrust, Undersize, 0.25 mm

1шт.

9

84144524

THRUST BEARING

Thrust, Undersize, 0.5 mm

1шт.

9

84144525

SET OF STD MAIN BRGS

Standard

1шт.

9

84144526

SET OF STD MAIN BRGS

Undersize, 0.25 mm

1шт.

9

84144527

SET OF STD MAIN BRGS

Undersize, 0.5 mm

1шт.
