Запчасти Case IH 3330 (55.440.23) - AIM COMMAND, ELECTRICAL GROUP, 6 SEC (55) - ELECTRICAL SYSTEMS

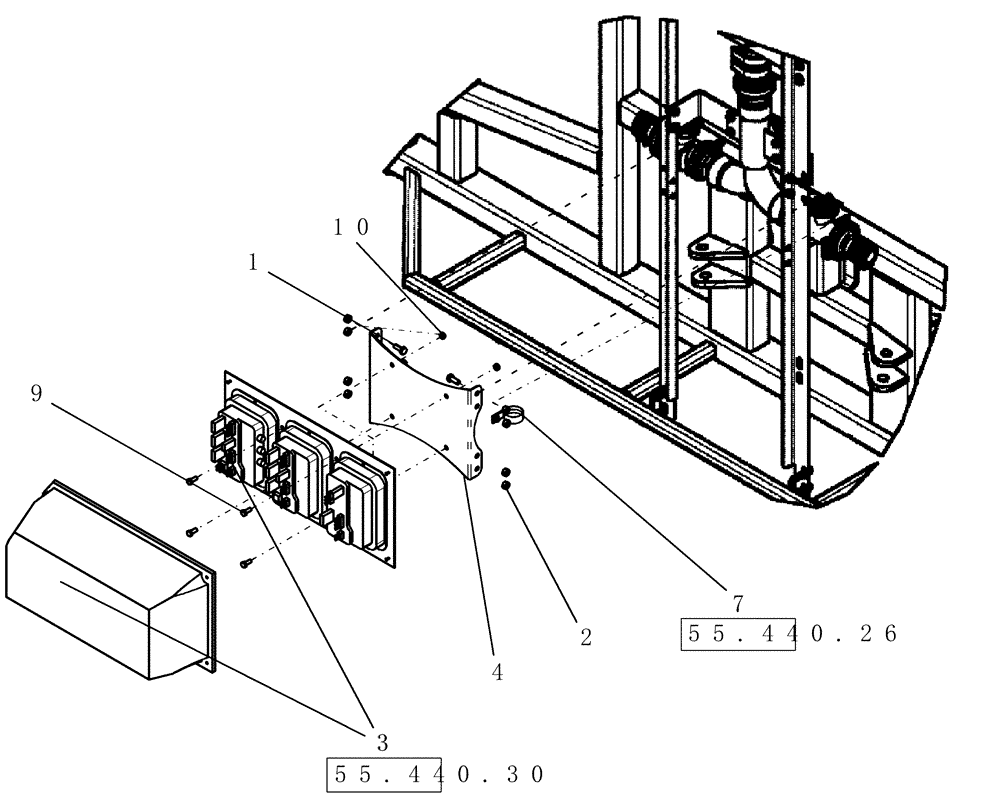

Схема запчастей Case IH 3330 - (55.440.23) - AIM COMMAND, ELECTRICAL GROUP, 6 SEC (55) - ELECTRICAL SYSTEMS
3
7
2
55.440.30
55.440.26
4
10
1
9
3

Артикул

Название

Примечание

Количество

1

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

8шт.

2

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

3

84230046

MODULE

Assembly, Aim Command

1шт.

Refer to 55.440.30

1шт.

4

87271089

BRACKET, SUPPORTING

Aim Command, Rear

1шт.

5

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

7

9991588

NUT,M8 x 1.25, Cl 8

4шт.

Выбрано товаров: 7
