Запчасти Case IH 3330 (55.440.12) - PACKAGE, SENSORS, AUTOFOLD PLUS, 120 (55) - ELECTRICAL SYSTEMS

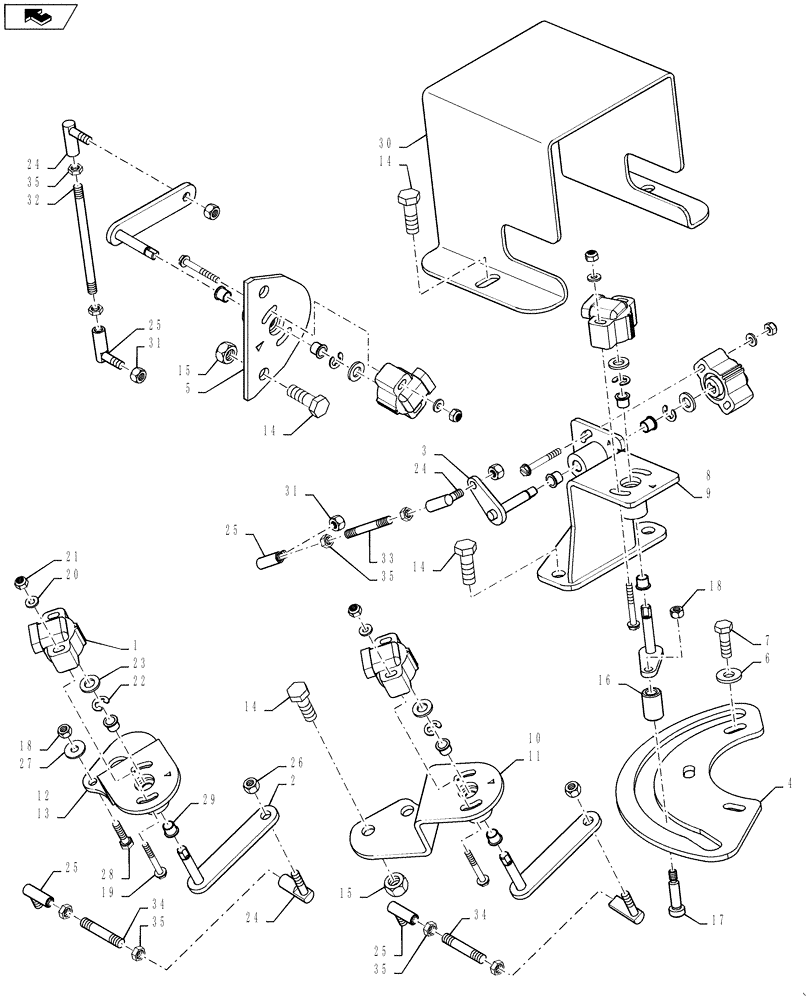

Схема запчастей Case IH 3330 - (55.440.12) - PACKAGE, SENSORS, AUTOFOLD PLUS, 120 (55) - ELECTRICAL SYSTEMS
16
8
14
14
9
13
22
29
17
35
25
home
15
25
18
34
32
35
24
35
7
33
30
31
26
23
28
15
31
21
11
24
27
6
5
19
25
20
10
35
14
18
1
4
34
2
24
3
14
12
25

Артикул

Название

Примечание

Количество

1

86616339

SENSOR,CCW

Auto Header Height Control

9шт.

2

87046644

ROD

5шт.

3

431034A1

ARM

AHHC SENSOR CONTROL

4шт.

4

87482929

CAM

PIVOT SENSOR

2шт.

5

87484198

MOUNT

CENTER SECTION

1шт.

6

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

6шт.

7

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

8

87487940

MOUNT

SENSOR, BOOM PIVOT, LH

1шт.

9

87487944

MOUNT

SENSOR, BOOM PIVOT, RH

1шт.

10

87488490

MOUNT

SENSOR, MID, RH

1шт.

11

87488488

MOUNT

SENSOR, MID, LH

1шт.

12

87488492

MOUNT

SENSOR, OUTER, LH

1шт.

13

87488494

MOUNT

SENSOR, OUTER, RH

1шт.

14

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

14шт.

15

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

6шт.

16

87488496

ROLLER

CAM, POLY

2шт.

17

87495287

HEX SOC SCREW,Shoulder, M6 - 8 x 25 mm, Cl 12.9

2шт.

18

353308

NUT,M6 x 1.0, Cl 8

4шт.

19

BN316803

SCREW,#10 - 24 x 1 1/2", SST

MACH- 10-24 X 1.5 SS

18шт.

20

BN310265

WASHER

10, Stainless Steel

18шт.

21

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

18шт.

22

86640147

SNAP RING,#31, Ext, E-Type

9шт.

23

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

9шт.

24

A10329

BALL JOINT,1/4" - 28 x 1"

1/4" Ball

7шт.

25

86550597

BALL JOINT,1/4" -28 x 1

Quick Disconnect

7шт.

26

20332

LOCK NUT,#10-32, GB

10шт.

27

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

2шт.

28

86980361

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

29

87492420

BUSHING

8 ID X 9.6 OD X 8 LONG, FLANGE

18шт.

30

87488487

COVER

PIVOT SENSORS

2шт.

31

20332

LOCK NUT,#10-32, GB

3шт.

32

84135001

TIE-ROD

.250-28UNF X 136MM, DOR

1шт.

33

84135002

TIE-ROD

.250-28UNF X 78MM, DOR

2шт.

34

84135003

TIE-ROD

.250-28UNF X 52MM, DOR

4шт.

35

86976064

JAM NUT,Jam, 1/4"-28, G5

14шт.

Выбрано товаров: 35
