Запчасти Case IH 3330 (55.440.05[02]) - PRO 700 CONTROL DISPLAY, SN YBT031001 AND AFTER (55) - ELECTRICAL SYSTEMS

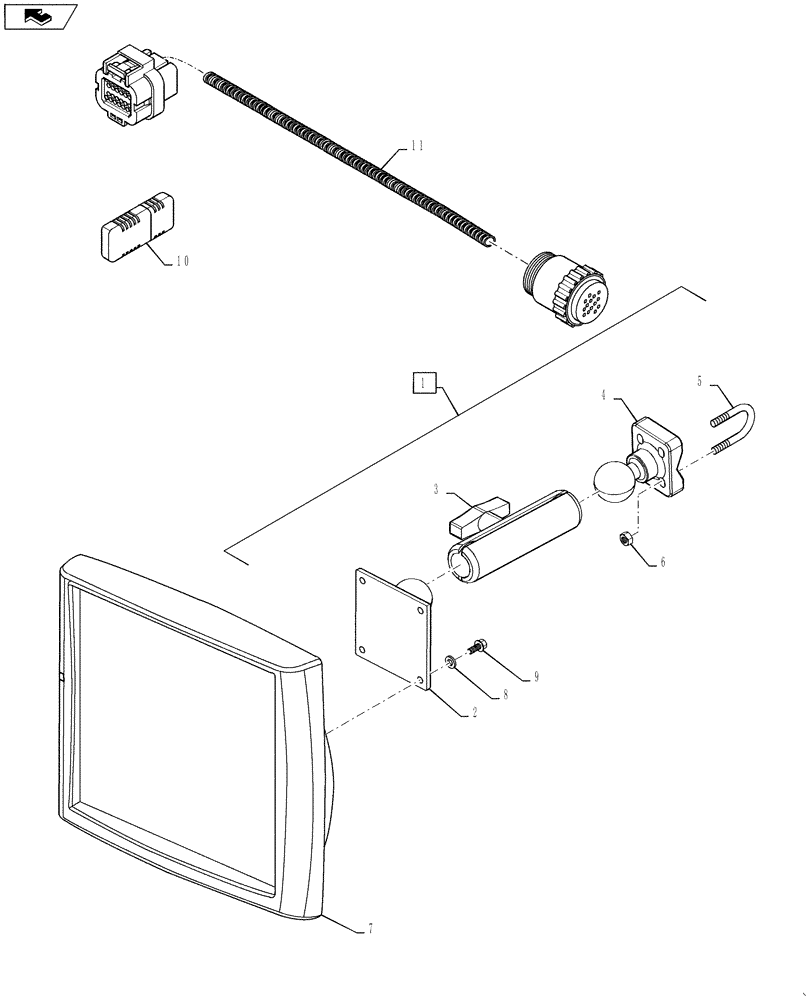

Схема запчастей Case IH 3330 - (55.440.05[02]) - PRO 700 CONTROL DISPLAY, SN YBT031001 AND AFTER (55) - ELECTRICAL SYSTEMS
1
5
9
home
11
10
3
4
6
8
7
2

Артикул

Название

Примечание

Количество

1

87386396

MOUNT

Mount Color Display

1шт.

2

87386398

SUPPORTING ARM

Ram Square Mount, 75 x 75

1шт.

3

87284257

ARM

Double Socket, 1.5" Ball

1шт.

4

87284259

PLATE

Base, Double U-Bolt

1шт.

5

86632541

U-BOLT,1/4” - 20, 1.75” L x 1” W

2шт.

6

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

7

84546676

DISPLAY

Display, Pro 700

1шт.

84546676R

REMAN-ELECT MONITOR

3330, SN YBT031001 AND AFTER, (11/08-)

1шт.

84546676C

CORE-MONITOR

Return Number

1шт.

.

892-11006

LOCK WASHER,M6

4шт.

9

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

10

84398840

MEMORY CARD,4GB

COMPUTER CARD USB Flash Drive, 4GB, Not Shown

1шт.

11

84189330

WIRE HARNESS

Pro 700 Display, Runs From Back Of Display To Connector Below Insturment Cluster, Not Shown

1шт.

Выбрано товаров: 13
