Запчасти Case IH 3330 (55.440.04[02]) - ACCUGUIDE ELECTRICAL GROUP, FRAME, SN YCT033425 AND AFTER (55) - ELECTRICAL SYSTEMS

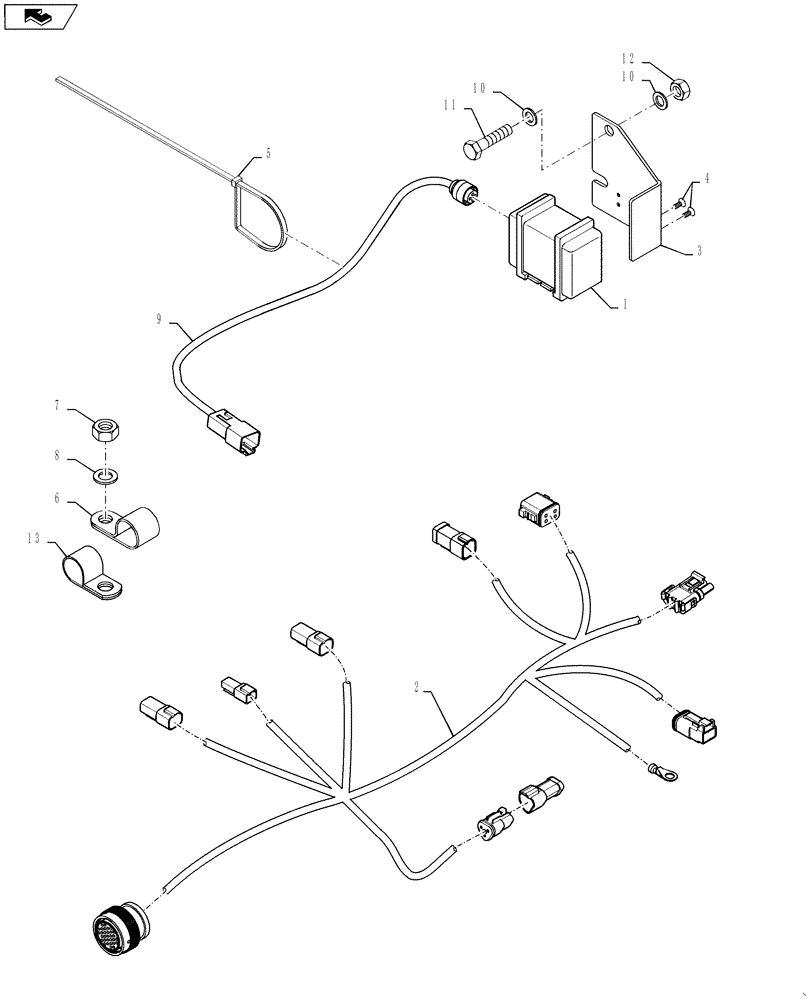

Схема запчастей Case IH 3330 - (55.440.04[02]) - ACCUGUIDE ELECTRICAL GROUP, FRAME, SN YCT033425 AND AFTER (55) - ELECTRICAL SYSTEMS
9
6
4
3
7
12
home
5
13
10
1
2
11
10
8

Артикул

Название

Примечание

Количество

1

87743199

MODULE

Autoguide Steering Sensor

1шт.

2

87648175

HARNESS

SPX Outside, Autoguidance

1шт.

3

47365834

MOUNT

Autosense, SPX

1шт.

4

87657976

HEX SOC SCREW,Flat Hd, CSK, #6 - 32 x 3/8"

6-32 X .375

4шт.

5

BN570007

STRAP

5шт.

6

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

7

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

8

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

2шт.

9

87743200

HARNESS

Jumper, 24", Autosense

1шт.

10

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

11

86980424

BOLT,Hex, M12 x 1.75 x 45, Cl 8.8, DOR

2шт.

12

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

2шт.

13

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

Выбрано товаров: 13
