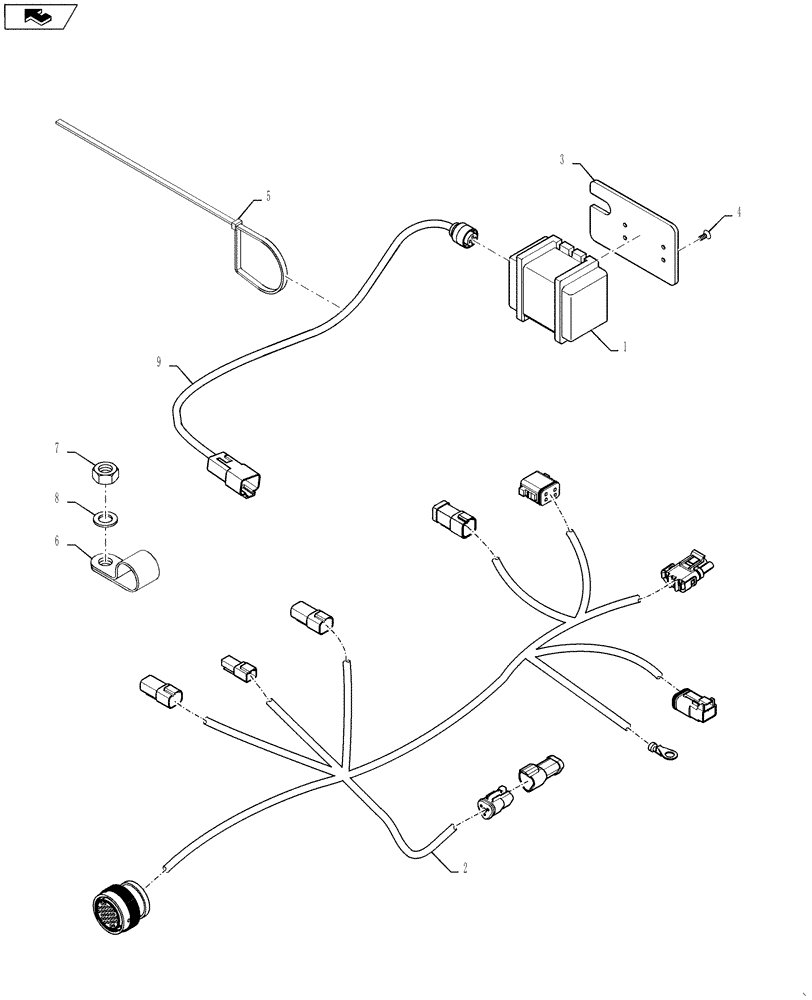

Запчасти Case IH 3330 (55.440.04[01]) - ACCUGUIDE ELECTRICAL GROUP, FRAME, BSN YCT033425 (55) - ELECTRICAL SYSTEMS

1

87743199

MODULE

Autoguide Steering Sensor

1шт.

2

87648175

HARNESS

SPX Outside, Autoguidance

1шт.

3

87649884

MOUNT

Autosense, SPX

1шт.

4

87657976

HEX SOC SCREW,Flat Hd, CSK, #6 - 32 x 3/8"

6-32 X .375

4шт.

5

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

4шт.

6

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

3шт.

7

9991588

NUT,M8 x 1.25, Cl 8

2шт.

8

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

2шт.

9

87743200

HARNESS

Jumper, 24", Autosense

1шт.
