Запчасти Case IH 3330 (55.418.10) - KIT, AUTOBOOM, 90 AND 100, BOOM LEVEL AND HEIGHT CONTROL (55) - ELECTRICAL SYSTEMS

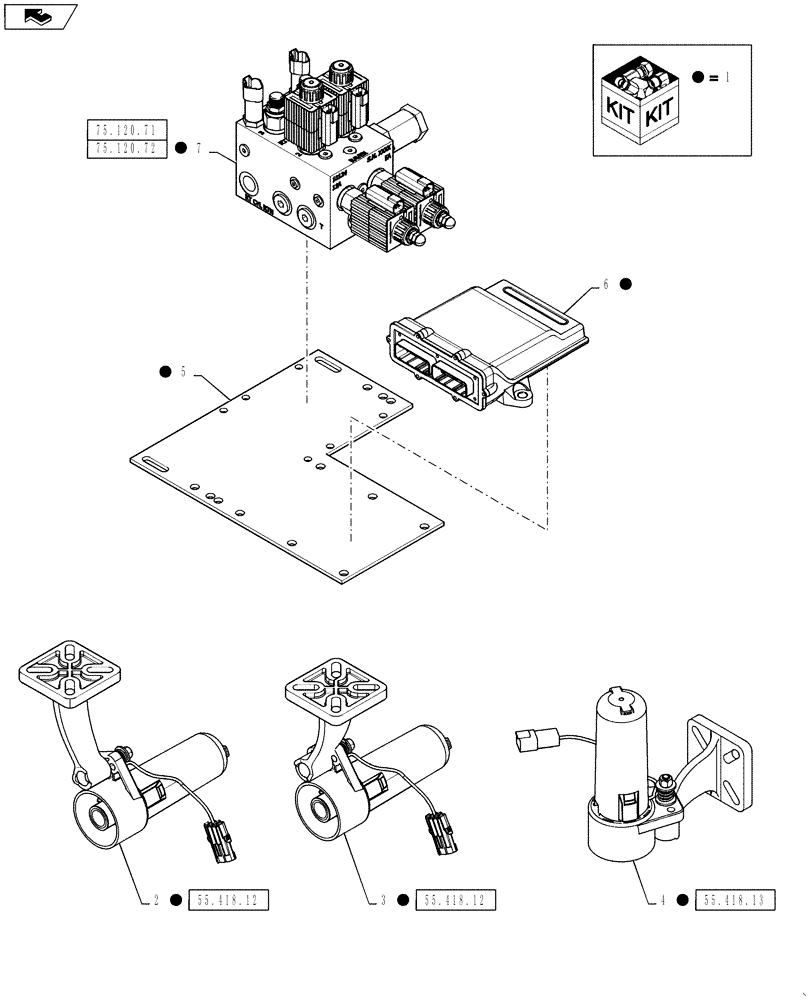

Схема запчастей Case IH 3330 - (55.418.10) - KIT, AUTOBOOM, 90 AND 100, BOOM LEVEL AND HEIGHT CONTROL (55) - ELECTRICAL SYSTEMS
55.418.12
55.418.13
55.418.12
75.120.71
1
3
1
home
1
7
75.120.72
1
6
1
4
2
1
1
1
5

Артикул

Название

Примечание

Количество

1

84247473

KIT

Ultraglide, Autoboom, 90' - 100', BSN YAT027065, Incl 2 - 10

1шт.

1

47545007

CONTROLLER

DIA Kit, Ultraglide, Autoboom, 90' - 100', SN YAT027065 And Later, Incl 2 - 10

1шт.

2

87710685

SENSOR

Ultrasonic, Right

1шт.

3

87710686

SENSOR

Ultrasonic, Left

1шт.

4

84247475

SENSOR

Ultrasonic

1шт.

5

87718266

MOUNTING PLATE

Hydraulic Block, CAN, Autoboom

1шт.

6

87717349

MODULE

Node, CAN, Autoboom

1шт.

87717349R

REMAN-MODULE

3330 - PATRIOT SPRAYER - 11/08-

1шт.

87717349C

CORE-MODULE

Return Number

1шт.

7

84180940

WIRE HARNESS

60' Extension, UltraglideSensor (Not Shown)

2шт.

8

84241505

WIRE HARNESS

20', CAN, Powerglide Plus/Ultraglide Command (Not Shown)

1шт.

9

87717363

HYDRAULIC VALVE

Ultraglide, BSN YAT027064, Serial Range: -YAT027064

1шт.

9

84299098

HYDRAULIC VALVE

Ultraglide, ASN YAT027065, Start Serial: YAT027065

1шт.

10

87718974

SERVICE MANUAL

CAN, Autoboom Calibration (Not Shown)

1шт.

10

87718973

SERVICE MANUAL

Autoboom, Case IH (Not Shown)

1шт.

Выбрано товаров: 15
