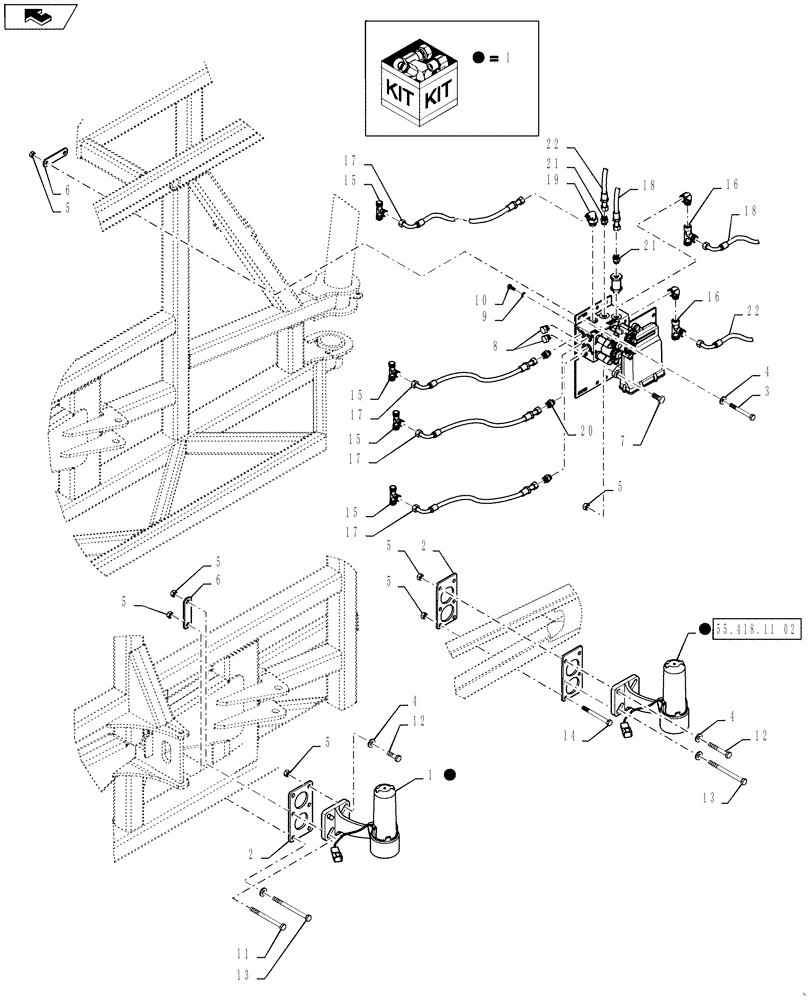

Запчасти Case IH 3330 (55.418.08[02]) - AUTOBOOM, ULTRAGLIDE, 120, BOOM LEVEL AND HEIGHT CONTROL, BSN YBT031929 (55) - ELECTRICAL SYSTEMS

1

84247474

SERVICE KIT

Autoboom, 120'

1шт.

Refer To 55.418.11(02)

1шт.

2

84256576

BRACKET

Sensor Mount

5шт.

3

86980409

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

12шт.

4

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

14шт.

5

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

25шт.

6

87620862

PLATE

2.5" Tube

4шт.

7

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

8

BN446048

PLUG

HEX, ORB 9/16-18 3/8 TUBE

2шт.

9

80681

LOCK WASHER,5/16"

4шт.

10

87342632

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

4шт.

11

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

4шт.

12

86980402

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

13

86980413

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

2шт.

14

86980412

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8

2шт.

15

BN302435

TEE

11/16 -16 ORFS x 11/16 -16 ORFS Swivel

4шт.

16

BN302436

TEE

13/16 -16 ORFS x 13/16 -16 ORFS Swivel

2шт.

17

84164481

HOSE,9.53mm ID x 1066mm L, SAE 100R17

-6 X 1066MM

4шт.

18

87487132

HOSE ASSY.

-8 X 813 MM

1шт.

19

BN302554

FITTING

11/16-16 ORFS x 3/4-16 ORB x 90 Deg

2шт.

20

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

2шт.

21

BN302650

FITTING

13/16 -16 ORFS x 3/4 -16 ORB

2шт.

22

87487133

HOSE ASSY.

-8 X 864 MM

1шт.
