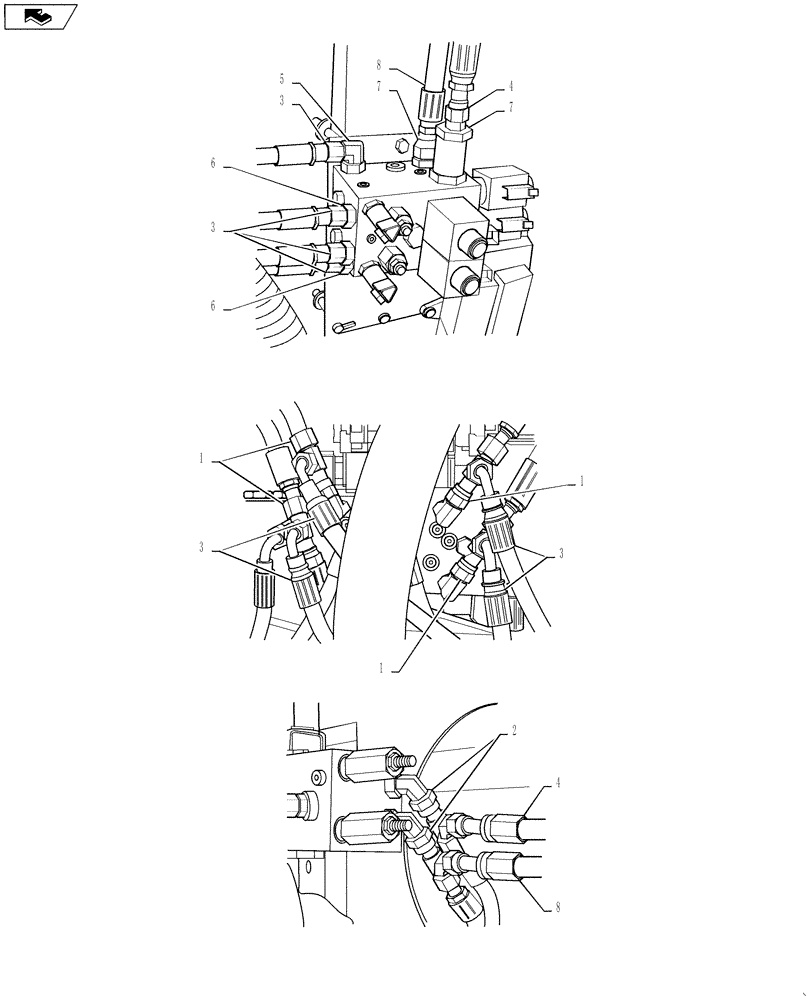

Запчасти Case IH 3330 (55.418.06[02]) - AUTOBOOM, ULTRAGLIDE, 90 AND 100, BOOM LEVEL ONLY (55) - ELECTRICAL SYSTEMS

1

BN302435

TEE

11/16 -16 ORFS x 11/16 -16 ORFS Swivel

4шт.

2

BN302436

TEE

13/16 -16 ORFS x 13/16 -16 ORFS Swivel

2шт.

3

342591A1

HOSE ASSY.

6 x 40"

4шт.

4

87487132

HOSE ASSY.

8 x 813 mm

1шт.

5

BN302554

FITTING

11/16-16 ORFS x 3/4-16 ORB x 90 Deg, Service with O-rings 128825 & 9993141

2шт.

6

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

2шт.

7

BN302650

FITTING

13/16 -16 ORFS x 3/4 -16 ORB

2шт.

8

87487133

HOSE ASSY.

8 x 864 mm

1шт.
