Запчасти Case IH 3330 (55.404.14) - REAR STOP, SIGNAL ASSEMBLY (55) - ELECTRICAL SYSTEMS

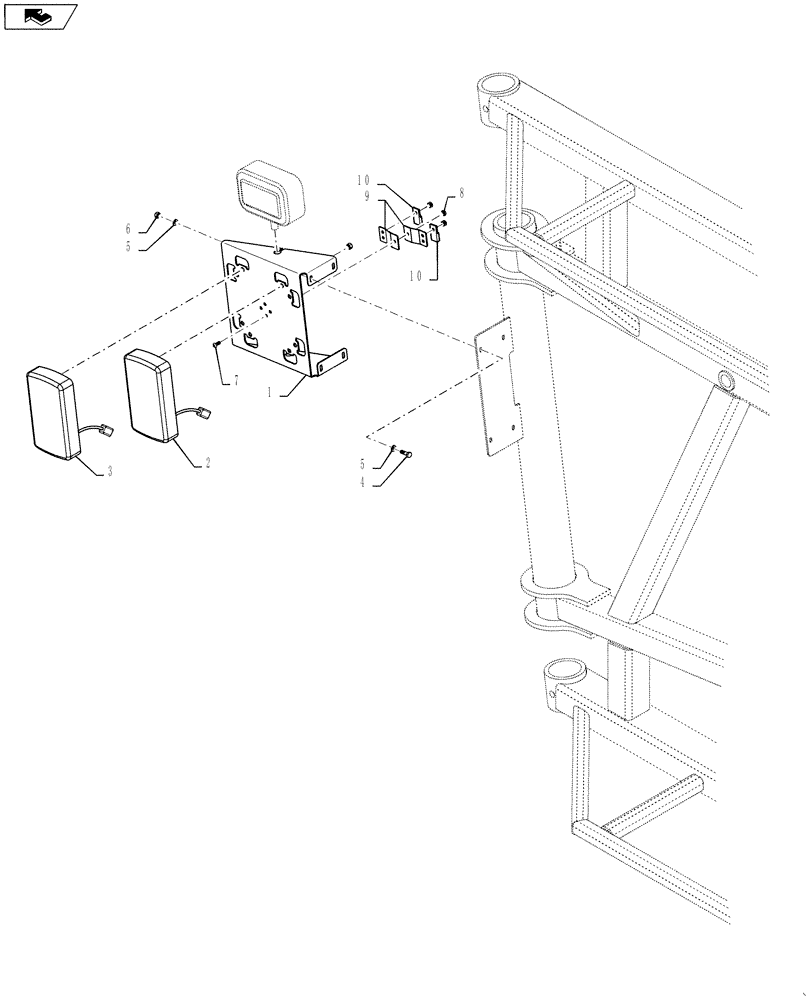

Схема запчастей Case IH 3330 - (55.404.14) - REAR STOP, SIGNAL ASSEMBLY (55) - ELECTRICAL SYSTEMS
6
2
10
4
8
5
3
10
home
1
5
9
7

Артикул

Название

Примечание

Количество

1

87267089

MOUNTING PLATE

Tail Light, (LED)

2шт.

2

BN325077

LAMP, TAIL

LIGHT, TAIL Led Red, 12V, 36 LED Pattern, BSN YBT029329

2шт.

2

84385294

LAMP

LED Red, 12V, 24 LED Pattern, ASN YBT029329

2шт.

3

BN325078

LIGHT

Turn, Led Amber, 12V, 36 LED Pattern, BSN YBT029329

2шт.

3

84385299

LAMP

Turn, LED Amber, 12V, 24 LED Pattern, ASN YBT029329

2шт.

4

120100

BOLT,M6 x 20mm, Cl 8.8

16шт.

5

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

24шт.

6

353308

NUT,M6 x 1.0, Cl 8

16шт.

7

BN52348

BOLT,Phil Pan Hd, #10 - 32 x 1/2", Stainless

10-32 X 1/2 SS, PH, PHILLIP

2шт.

8

225-30210

NUT,#10-32, Stainless

2шт.

9

87267087

RETAINER

Assembly, Deutsch LH

2шт.

10

87267088

RETAINER

Assembly, Deutsch RH

2шт.

Выбрано товаров: 12
