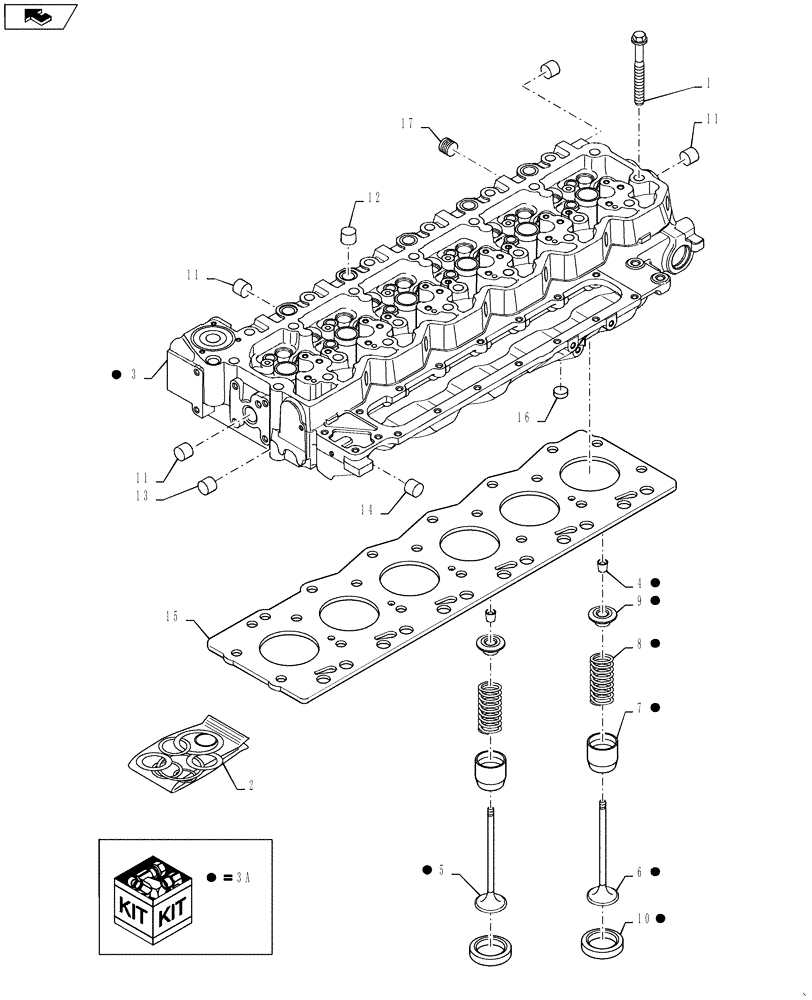

Запчасти Case IH 3330 (10.101.03) - ENGINE CYLINDER HEAD (10) - ENGINE

1

4891024

BOLT,Flng, M12 x 1.75 x 130mm

Hex Flange Hd Cap, M12 x 130

12шт.

1

4891025

SCREW,Flng, M12 x 1.75 x 150mm

Hex Flange Hd Cap, M12 x 150

14шт.

2

87478869

GASKET KIT

KIT, Head Gasket

1шт.

3

2831279

CYLINDER HEAD,6 Cylinders

1шт.

3

2831279C

CORE-CYLINDER HEAD

Return Number, For N.A. Only

1шт.

3a

87536188

CYLINDER HEAD

Kit, 6 CYL 4V-T2 and T3

1шт.

87536188R

REMAN-CYLINDER HEAD

3330 (11/08)

1шт.

87536188C

CORE-CYLINDER HEAD

Return Number

1шт.

Include Ref. 3,4,5,6,7,8,9,10

1шт.

3b

2831274

CYLINDER HEAD,6 Cylinders

Include Ref. 3,4,5,6,7,8,9,10

1шт.

2831274R

REMAN-CYLINDER HEAD

3330 (11/08-)

1шт.

2831274C

CORE-CYLINDER HEAD

Return Number

1шт.

4

4899081

ROCKER ARM COTTER

48шт.

5

4895051

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

12шт.

6

4895052

STD INLET VALVE

STD ENGINE INLET VALVE

12шт.

7

2831287

SEAL,12.6mm ID x 28.5mm OD x 0.6mm Thk

24шт.

8

2831473

VALVE SPRING,Compression, 18.8mmOD x 45.2mm L

24шт.

9

4895074

CUP,18mm ID

24шт.

10

4893244

VALVE SEAT,28.42mm ID x 34.9mm OD x 5.75mm L

24шт.

11

4895085

EXPANSION PLUG,25.74mm

13шт.

11

4895408

PLUG,0.511" L

2шт.

12

4895089

PLUG,0.886" L

11шт.

13

4895406

EXPANSION PLUG,9.8mm OD

7шт.

14

4895407

EXPANSION PLUG,38.28mm OD

2шт.

15

2830704

CYLINDER HEAD GASKET,1.25mm Thk

SP 1.25

1шт.

16

4893036

PIPE PLUG,3/4"-14 NPTF

3шт.

17

4895408

PLUG,0.511" L

2шт.
