Запчасти Case IH 3330 (55.301.01[02]) - BATTER BOX GROUP - ASN Y9T026054 (55) - ELECTRICAL SYSTEMS

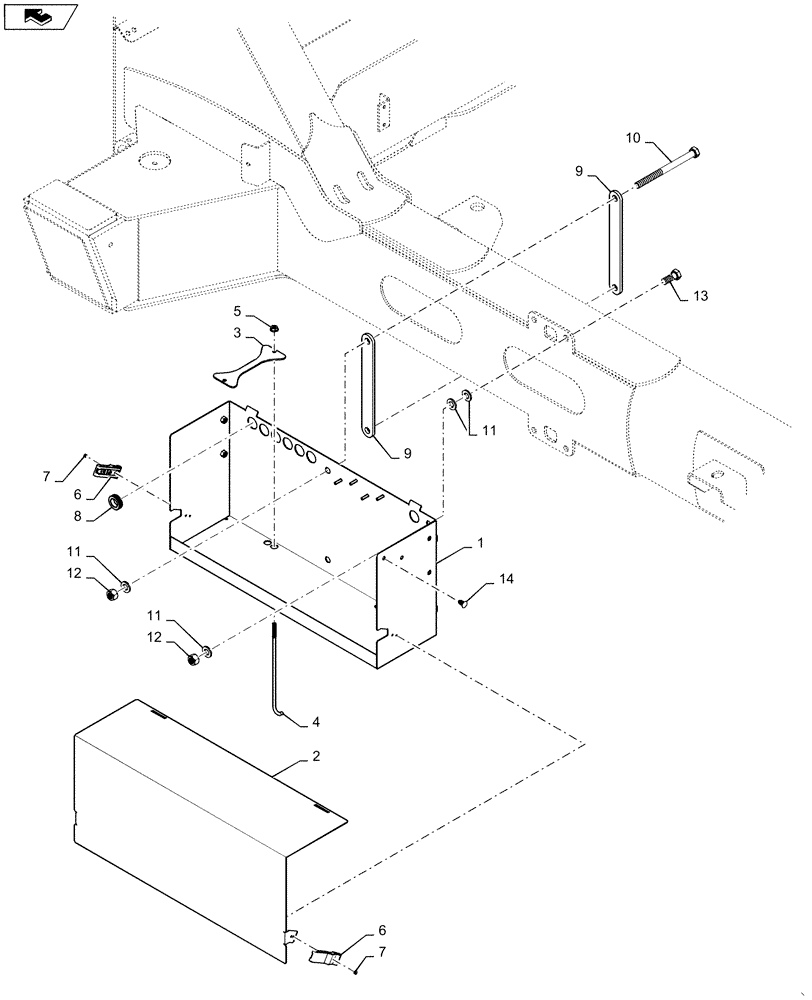

Схема запчастей Case IH 3330 - (55.301.01[02]) - BATTER BOX GROUP - ASN Y9T026054 (55) - ELECTRICAL SYSTEMS
11
7
11
12
9
6
home
14
3
12
11
7
8
2
10
5
13
1
9
4
6

Артикул

Название

Примечание

Количество

1

47605990

BATTERY BOX

1шт.

2

84217998

COVER

BATTERY

1шт.

3

BN320331

BRACKET

BATTERY MOUNT

2шт.

4

87691876

ROD

BATTERY HOLD DOWN

4шт.

5

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

4шт.

6

BN307683

LATCH

SOFT, W/ CONCEAL KEEP

2шт.

7

87017053

RIVET,Pop, .146" x .425"

8шт.

8

BN2290753

GROMMET

7/8" HOLE

7шт.

9

84208184

MOUNT

BATTERY BOX

2шт.

10

87341828

BOLT,Hex, M16 x 200mm, Cl 8.8

M16 x 200, CL8.8, DOR

2шт.

11

87529306

WASHER,17.5mm ID x 30mm OD x 4mm Thk

17.5X30X4MM HTS DOR HDN

8шт.

12

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

4шт.

13

86980444

BOLT,Hex, M16 - 2 x 40mm, Cl 8.8, DOR

2шт.

14

87529297

CLIP

Christmas Tree, 8.6 mm Hole

2шт.

Выбрано товаров: 14
