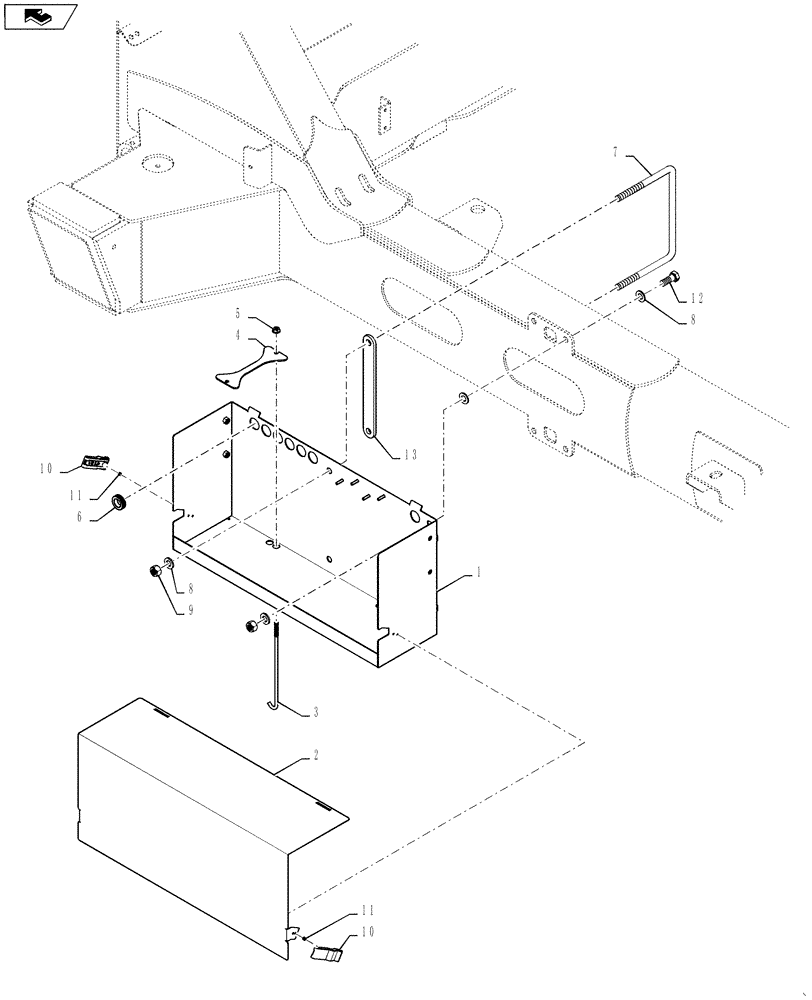

Запчасти Case IH 3330 (55.301.01[01]) - BATTERY BOX GROUP - BSN Y9T026055 (55) - ELECTRICAL SYSTEMS

1

NSS

NOT SOLD SEPARAT

WELDMENT, BATTERIES

1шт.

2

87271469

COVER

BATTERY BOX

1шт.

3

87691876

ROD

Battery Hold Down

4шт.

4

BN320331

BRACKET

Mount, Battery

2шт.

5

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

4шт.

6

BN2290753

GROMMET

2870 (7/8" Hole)

7шт.

7

343008A1

U-BOLT

M16 x 10.5" x 6"

1шт.

8

87529306

WASHER,17.5mm ID x 30mm OD x 4mm Thk

17.5 x 30 x 4 mm, HDN, DOR

4шт.

9

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

4шт.

10

BN307683

LATCH

SOFT W/CONCEAL KEEP

2шт.

11

87017053

RIVET,Pop, .146" x .425"

2шт.

12

86980444

BOLT,Hex, M16 - 2 x 40mm, Cl 8.8, DOR

8шт.

13

NSS

NOT SOLD SEPARAT

BATTERY BOX

1шт.
