Запчасти Case IH 3330 (55.160.01[02]) - PACKAGE, ELECTRICAL, RH CONSOLE (55) - ELECTRICAL SYSTEMS

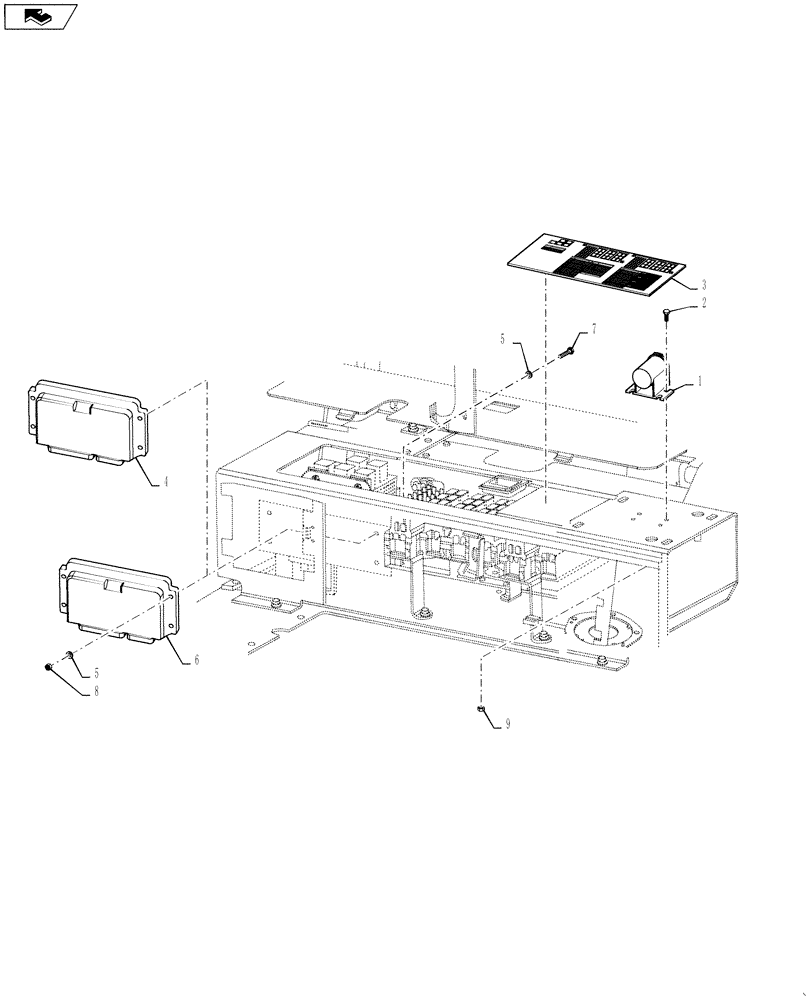

Схема запчастей Case IH 3330 - (55.160.01[02]) - PACKAGE, ELECTRICAL, RH CONSOLE (55) - ELECTRICAL SYSTEMS
4
2
1
7
3
9
5
home
8
6
5

Артикул

Название

Примечание

Количество

1

BN67965

POWER SOCKET

ASS'Y POWER OUTLET, W/END

1шт.

2

87342151

BOLT,Hex, M4 x 12mm, Cl 8.8, Full Thd

4шт.

3

87486057

DECAL

DECAL, FUSE/RELAY

1шт.

4

87693195

CONTROL UNIT

REXROTH RC2-2, BSN YBT029371

1шт.

5

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

3шт.

6

84395083

CONTROL UNIT

REXROTH RC2-2, SN YBT029371 And After

1шт.

7

86980362

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

1шт.

8

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

9

87344029

NUT,Prev Torque, M4, 0.7 Pitch, Cl 8, DOR

4шт.

Выбрано товаров: 9
