Запчасти Case IH 3330 (55.160.01[01]) - PACKAGE, ELECTRICAL, RH CONSOLE (55) - ELECTRICAL SYSTEMS

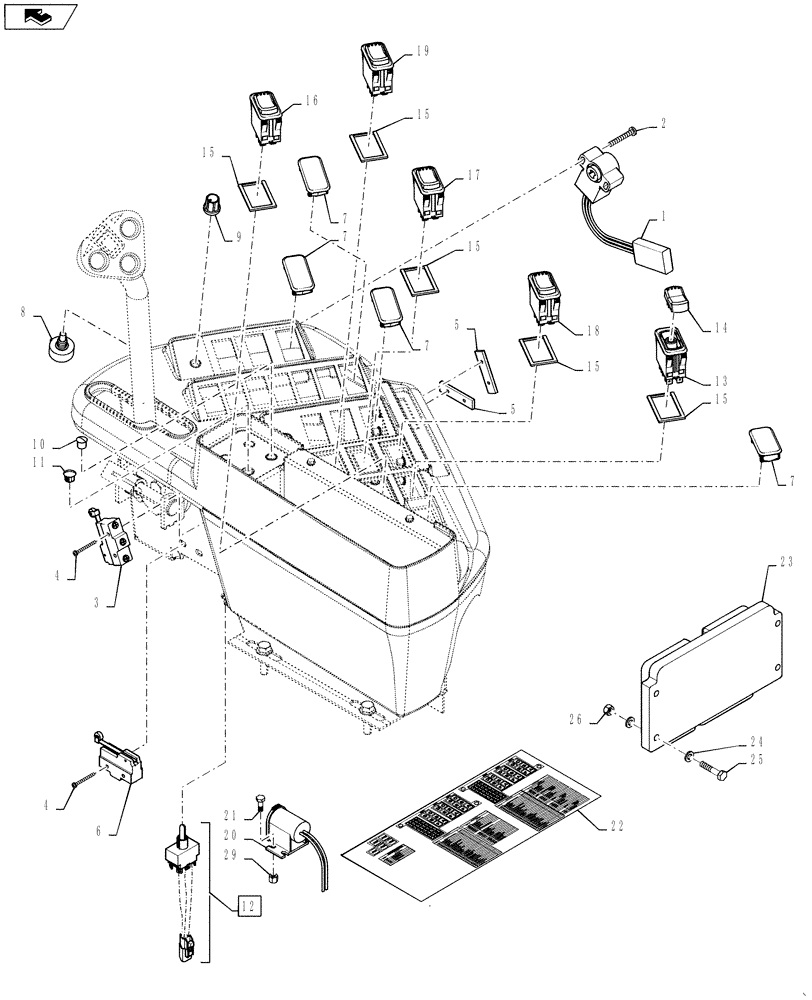

Схема запчастей Case IH 3330 - (55.160.01[01]) - PACKAGE, ELECTRICAL, RH CONSOLE (55) - ELECTRICAL SYSTEMS
17
4
8
22
15
6
5
2
12
11
19
26
7
15
home
15
7
7
7
18
20
29
5
3
15
14
10
4
23
1
21
9
13
24
25
15
16

Артикул

Название

Примечание

Количество

1

BN322638

SENSOR

SENSOR ASSY, ROTARY POS

1шт.

2

87343613

SCREW,Phil Pan Hd, M5 x 35mm, Cl 4.8, Full Thd

M5 X 35 PHD H 4.8

2шт.

3

BN323495

ADAPTER

Reverse

1шт.

4

86511818

SCREW,Pan HD, M3 x 0.5 x 30mm, Cl 4.8

4шт.

5

87492830

PLATE

Prop Switch Mount

2шт.

6

BN323496

TOGGLE SWITCH

Neutral Safety Switch

1шт.

7

BN322626

PLUG

Panel, NGR

9шт.

8

BN325618

POTENTIOMETER,1000 Ohm

Assembly, Ground Speed

1шт.

9

118780A1

KNOB

Console Control

1шт.

10

353-402

PLUG,Dome, .375" hole, Nylon

2шт.

11

282056A1

PLUG

double d

1шт.

12

BN323620

SWITCH

Assembly, Axle In/Out

1шт.

13

87388415

SWITCH

NRG, on-none-off

1шт.

14

BN325000

SWITCH

rocker, main power

1шт.

15

BN325825

SPACER

Switch

5шт.

16

BN321916

SWITCH

Sparge Pressure

1шт.

17

BN321914

SWITCH

Boom Height

1шт.

18

BN321915

SWITCH

Boom Fold RH

1шт.

19

BN321913

SWITCH

1шт.

20

BN67965

POWER SOCKET

1шт.

21

87342151

BOLT,Hex, M4 x 12mm, Cl 8.8, Full Thd

4шт.

22

87486057

DECAL

1шт.

23

87693195

CONTROL UNIT

REXROTH RC2-2, BSN YBT029371

1шт.

23

84395083

CONTROL UNIT

REXROTH RC2-2, SN YBT029371 And After

1шт.

24

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

3шт.

25

86980362

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

1шт.

26

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

27

NS

NOT SERVICED

PRIMER, THREAD SEALANT

1шт.

28

NS

NOT SERVICED

LOCTITE, 243-31 Removable

1шт.

29

87344029

NUT,Prev Torque, M4, 0.7 Pitch, Cl 8, DOR

4шт.

87728471

HARNESS

RH console, hyd, not Illustrated

1шт.

87728474

HARNESS

Product cab, not Illustrated

1шт.

Выбрано товаров: 32
