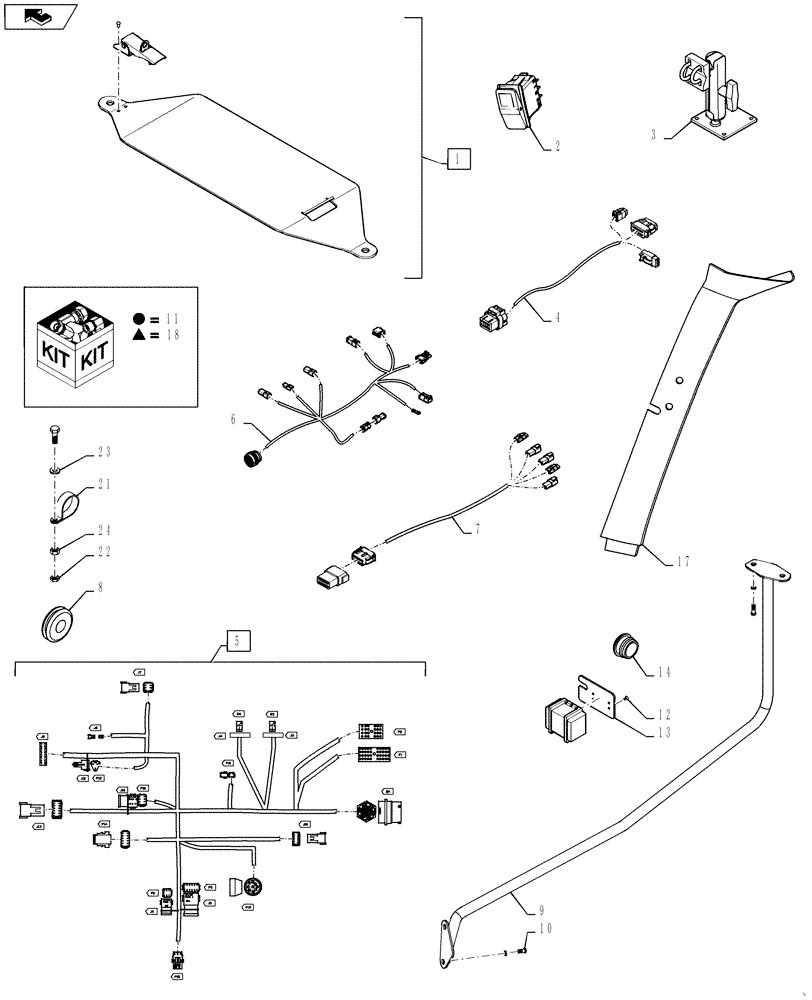

Запчасти Case IH 3330 (55.100.14[01]) - ELECTRICAL GROUP, AUTO GUIDE (55) - ELECTRICAL SYSTEMS

1

87552885

BRACKET

Assembly, Autoguidance

1шт.

2

87711789

AUTO GUIDANCE DISENG

1шт.

3

87386396

MOUNT

Mount Color Display

1шт.

Refer to 55.100.10

1шт.

4

87608504

HARNESS

Codi Jumper

1шт.

5

87648173

HARNESS

CCH Spray Cab Inside Autoguidance

1шт.

Refer to 55.100.15

1шт.

6

87648175

HARNESS

SPX Outside, Autoguidance

1шт.

7

87544759

HARNESS

GPS Antenna Receiver

1шт.

8

87330628

GROMMET

.750 ID X 1.625 GRV CA DIAG SPLT

1шт.

9

87439072

MOUNT

Monitor Mounting

1шт.

10

86639271

BOLT,Hvy Hex, M8 x 30mm, Cl 10.9, Full Thd

4шт.

11

87602275

KIT

AUTO SENSE AND CABLES

1шт.

12

87657976

HEX SOC SCREW,Flat Hd, CSK, #6 - 32 x 3/8"

6-32 X .375

4шт.

13

87649884

MOUNT

Autosense, SPX

1шт.

14

87649885

PLUG

Floor, Autoguidance

1шт.

15

NSS

NOT SOLD SEPARAT

REMOTE, W/CONNECTOR

1шт.

17

87542375

TRIM PANEL

RH C-Post

1шт.

18

87624359

KIT

NAR/ANZ RTK RADIO REC SYS

1шт.

19

NSS

NOT SOLD SEPARAT

DUAL LOCK

2шт.

20

BN315870

SEALANT

1шт.

21

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

22

9991588

NUT,M8 x 1.25, Cl 8

4шт.

23

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

4шт.

24

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

4шт.
