(55.100.12[01]) - AIM COMMAND, DOUBLE MOUNTING

Запчасти Case IH 3330 (55.100.12[01]) - AIM COMMAND, DOUBLE MOUNTING (55) - ELECTRICAL SYSTEMS

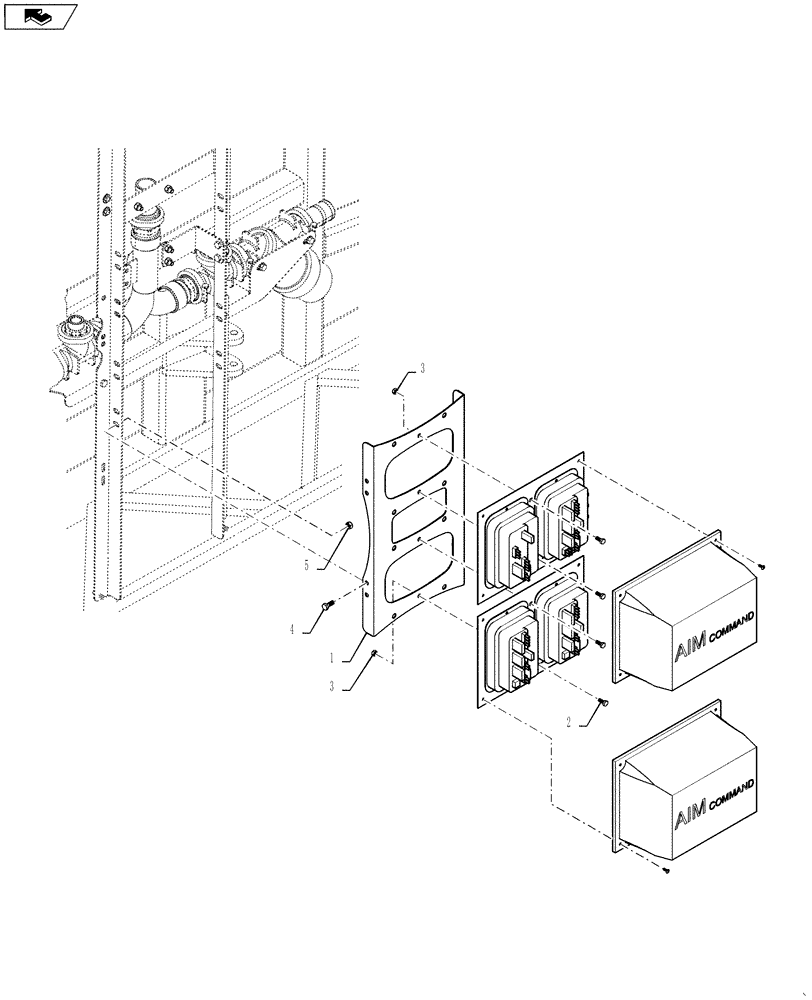

Схема запчастей Case IH 3330 - (55.100.12[01]) - AIM COMMAND, DOUBLE MOUNTING (55) - ELECTRICAL SYSTEMS
3
1
5
home
3
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87629080

BRACKET, SUPPORTING

MOUNT, AIM CMD, DOUBLE

1шт.

2

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

3

9991588

NUT,M8 x 1.25, Cl 8

4шт.

4

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

5

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.
