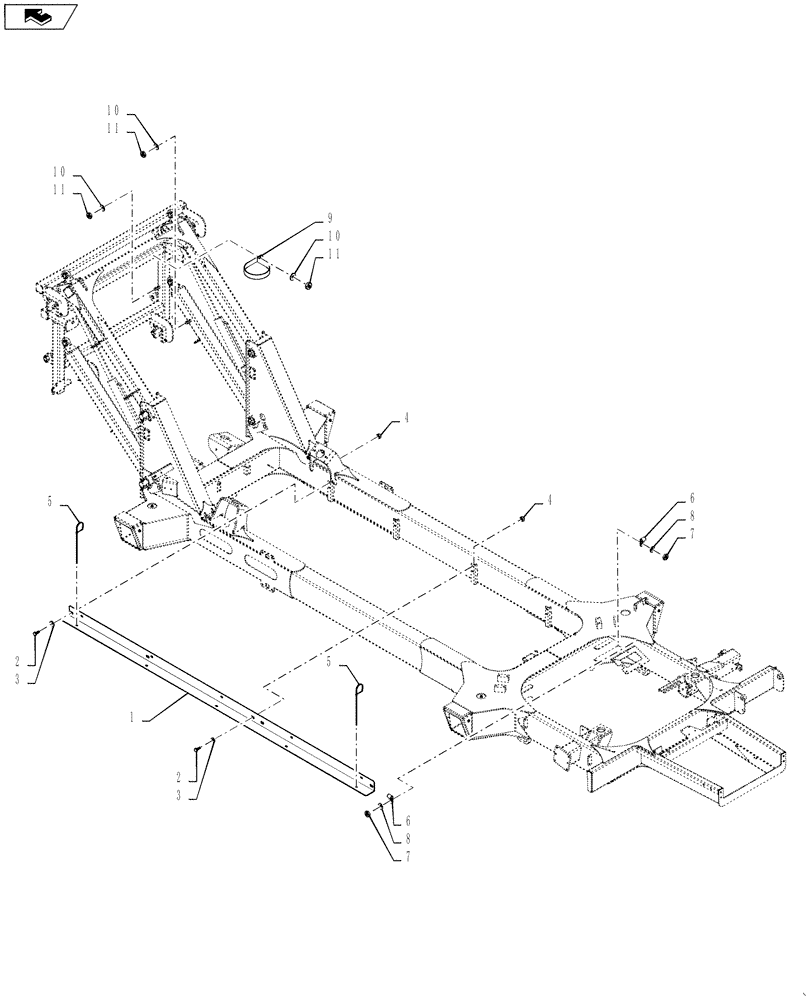

Запчасти Case IH 3330 (55.100.03) - HARNESS MOUNTING GROUP (55) - ELECTRICAL SYSTEMS

1

NSS

NOT SOLD SEPARAT

ELECTRICAL

1шт.

2

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

3шт.

3

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

3шт.

4

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

3шт.

5

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

5шт.

6

515-2179

CLAMP,5/16", Insul, 1/4" Bolt

2шт.

7

87344030

NUT,Prevailing Torque, M5 x 0.8, CL 8, DOR

2шт.

8

87529301

WASHER,5.6mm ID x 10mm OD x 1mm Thk

5.6 x 10 x 1 mm CST DOR

2шт.

9

87021161

CLAMP,76.2mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

10

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

3шт.

11

353308

NUT,M6 x 1.0, Cl 8

3шт.
