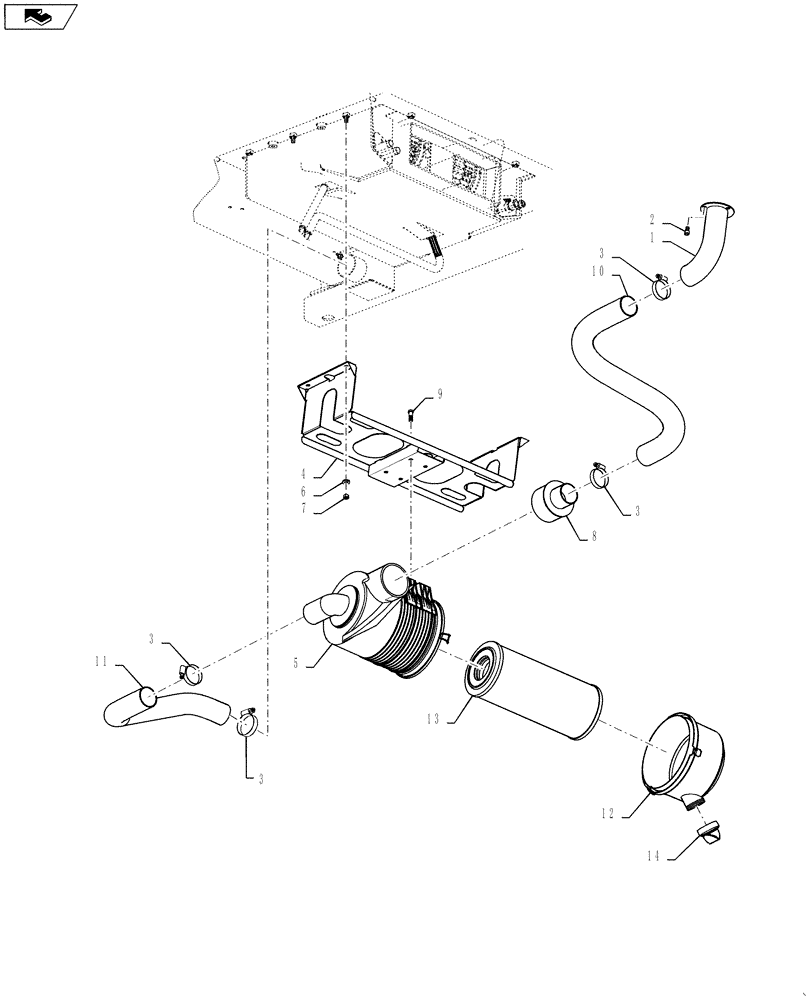

Запчасти Case IH 3330 (50.206.08) - AIR INTAKE SYSTEM, CAB (50) - CAB CLIMATE CONTROL

1

87529319

TUBE

AIR OUTLET

1шт.

2

864-8012

HEX SOC SCREW,M8 x 12mm, Cl 8.8

3шт.

3

214-1540

HOSE CLAMP,#40, 2.06" - 3", Type F Worm, W/ Liner

4шт.

4

87271699

MOUNTING PLATE

CAB AIR FILTER

1шт.

5

87272119

HOUSING

AIR FILTER

1шт.

6

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

4шт.

7

9991588

NUT,M8 x 1.25, Cl 8

4шт.

8

87272118

AIR INTAKE TUBE

1шт.

9

86981479

BOLT,Hex, M8 x 16mm, Cl 8.8

HVY FLANGE, M8 X 16 FU

4шт.

10

87268901

HOSE

Poly, Bulk

1шт.

Cut 39.36

1шт.

11

87268901

HOSE

Poly, Bulk

1шт.

Cut 35.4

1шт.

12

87033504

COVER ASSY

End

1шт.

13

87267363

AIR FILTER,Cab Charcoal Recirculation

Cab, Activated Charcoal

1шт.

14

9809800

DUST VALVE,1.93" ID x 2.24" OD

Used On Ref 12

1шт.
