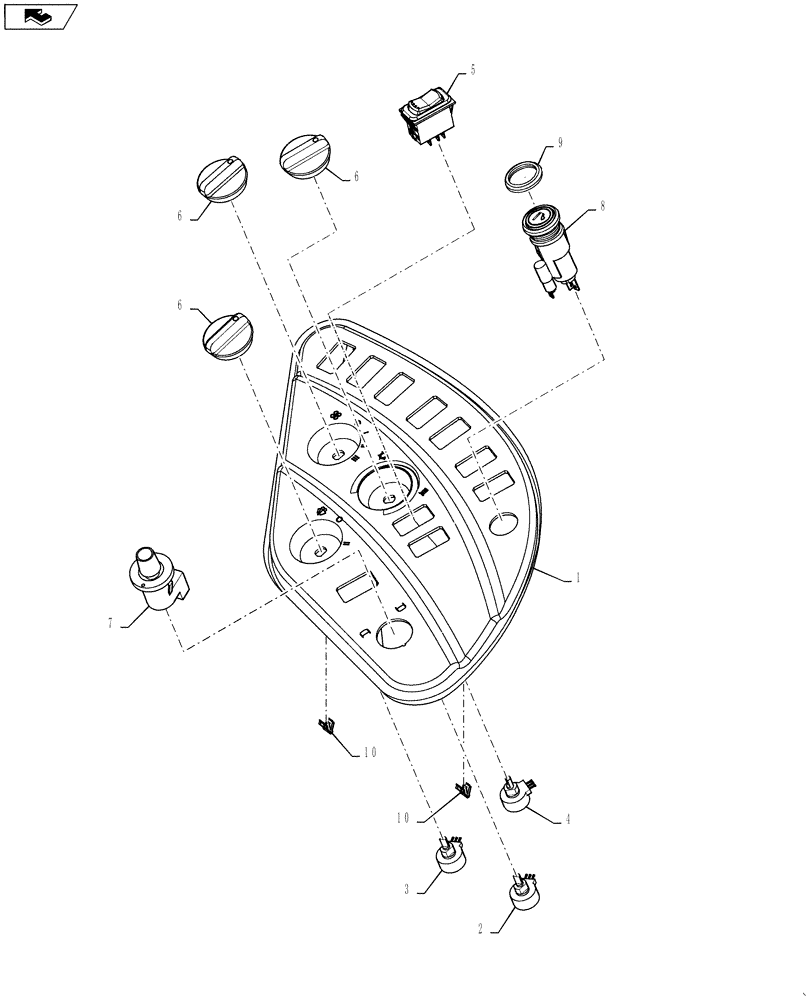

Запчасти Case IH 3330 (50.206.01) - HVAC, STANDARD CONTROL (50) - CAB CLIMATE CONTROL

1

87451321

PANEL

HVAC CONTROL, STANDARD

1шт.

2

92100C2

SWITCH

BLOWER MOTOR

1шт.

3

92115C2

SWITCH

FRONT WIPER

1шт.

4

326282A1

POTENTIOMETER,10,000 Ohm

cab temperature control

1шт.

5

87405636

SWITCH

Air Conditioning, On/Off

1шт.

6

1331046C2

KNOB

Switch Panel

3шт.

7

280627A1

SWITCH, MIRROR ADJUS

power

1шт.

Optional

1шт.

7

280628A1

PLUG

no power mirror

1шт.

Plug P/N 280682A1 Used, If Equipped Without Mirror Option

1шт.

8

87450395

BASE

OUTLET, POWER

1шт.

9

87450396

MOUNTING PARTS

BULB

1шт.

10

278316A2

CLIP

retainer

2шт.

Not Shown

1шт.
