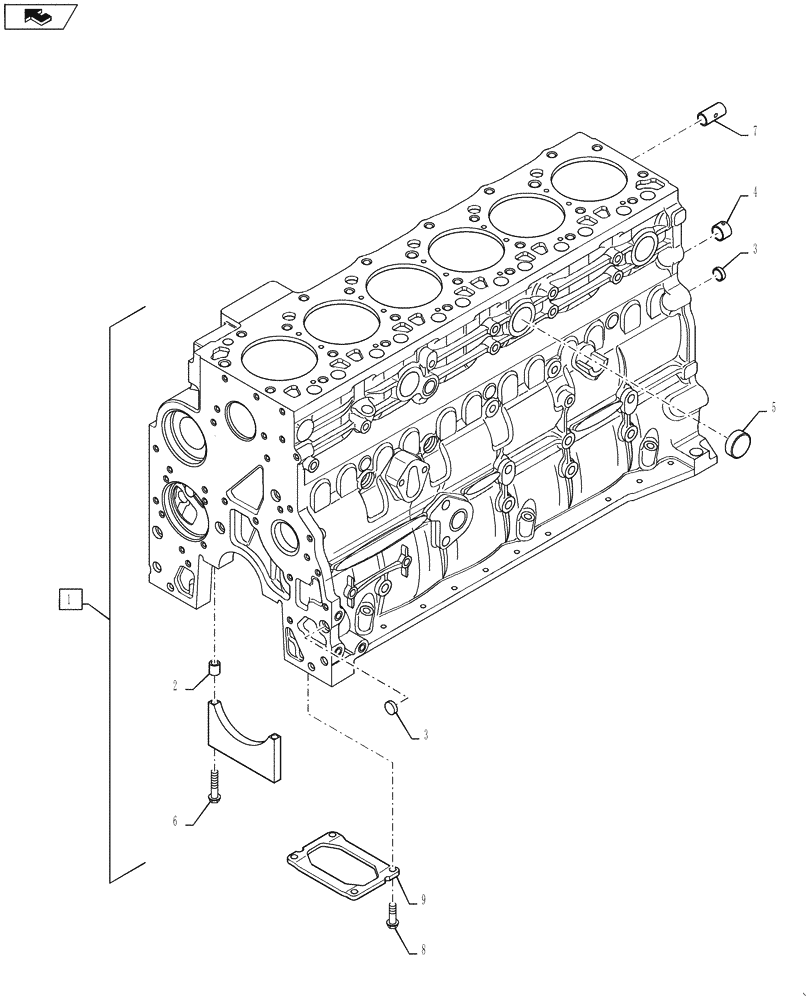

Запчасти Case IH 3330 (10.001.02) - ENGINE CYLINDER BLOCK (10) - ENGINE

1

2830076

CYLINDER BLOCK,6 Cylinders

1шт.

Includes Refs. 2 - 7

1шт.

2

4895049

DOWEL,M16.05 x 10

2шт.

If Used

1шт.

3

4895039

EXPANSION PLUG,M17.73

3шт.

4

4895038

EXPANSION PLUG,M58.06

6шт.

5

4895228

EXPANSION PLUG,35.23mm x 7.94mm

3шт.

6

4891353

SCREW,Flg Hd, M12 x 1.5 x 120

14шт.

7

4895040

BUSHING,54.39mm ID x 59.39mm OD x 25.4mm L

7шт.

8

4899032

SCREW,Hex Flg, M10 x 1.5 x 25

4шт.

9

2852729

STIFFENER

1шт.
