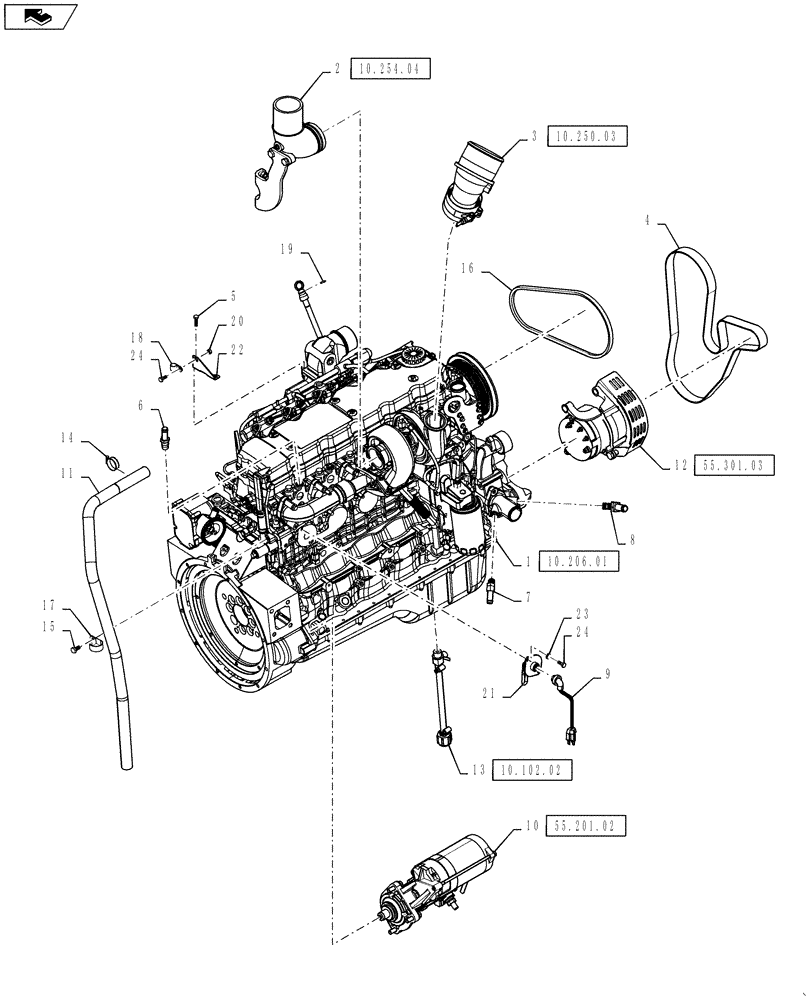

Запчасти Case IH 3330 (10.001.01) - ENGINE GROUP (10) - ENGINE

1

84159875

ENGINE

6 CYL. 4V TAA 186KW HPCR

1шт.

Refer to 10.206.01

1шт.

1

87538280

SHORT ENGINE

Block

1шт.

1

87538280ER

REMAN-SHORT ENGINE

1шт.

1

87538280EPAC

CORE-EPA ENGINE

Return Number

1шт.

1

87538280R

REMAN-SHORT ENGINE

1шт.

1

87538280C

SHORT ENGINE

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

ELBOW

1шт.

Refer to 10.254.04

1шт.

3

NSS

NOT SOLD SEPARAT

ELBOW, 3.5 X 45

1шт.

Refer to 10.250.03

1шт.

4

87519458

V-BELT

1шт.

5

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

2шт.

6

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

1шт.

7

87626014

FITTING

5/8 HB x M18 Thread

1шт.

8

87626015

FITTING

3/4 HB x M18 Thread

1шт.

9

87105748

ELECTRIC CABLE,120V, 15A

1829 mm (72") (Engine Block Heater, 120 Volt)

1шт.

10

NSS

NOT SOLD SEPARAT

STARTER GROUP

1шт.

Refer to 55.201.02

1шт.

11

84195917

HOSE,22.23 mm ID x 914.00 mm, SAE 20R1

, Start Year: 01-APR-09

1шт.

11

87619166

HOSE,19.05 mm ID x 290.00 mm, SAE 30R2 TYPE 1 OR 100R6

CCV, Years: -01-APR-09

1шт.

12

NSS

NOT SOLD SEPARAT

ALTERNATOR GROUP

1шт.

Refer to 55.301.03

1шт.

13

NSS

NOT SOLD SEPARAT

OIL DRAIN, M22

1шт.

Refer to 10.102.02

1шт.

14

BN75990

HOSE CLAMP

WORM TYP F

1шт.

15

86980399

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

M10-1.5 X 20, HH, 8.8, DOR

1шт.

16

87518813

V-BELT,12.70 mm W

A 41"

1шт.

17

86637998

CLAMP,38.1mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

18

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

19

BN305412

O-RING

M8 1.25 X 16, HH, 8.8, DO

1шт.

20

9991588

NUT,M8 x 1.25, Cl 8

1шт.

21

8602005

HEATER,750W, 120V

Block; 750W 120 V

1шт.

22

87579956

BRACKET

ENGINE OIL DIPSTICK

1шт.

23

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

2шт.

24

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.
