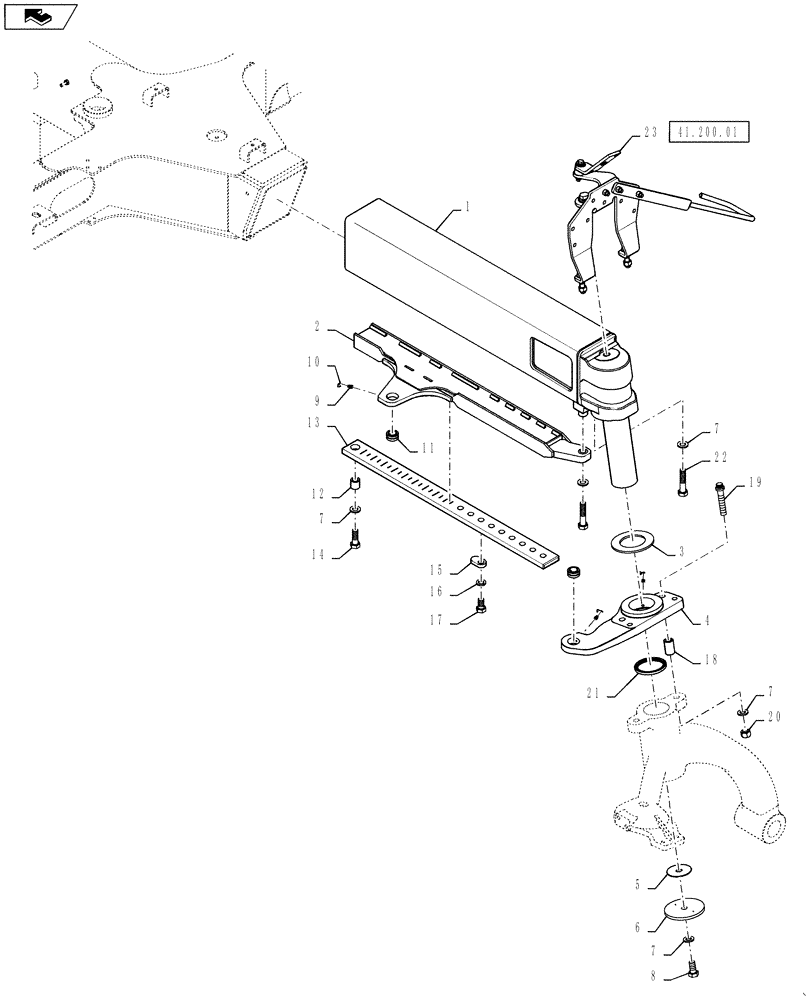

Запчасти Case IH 3330 (44.100.02) - AXLE GROUP, STEER (44) - WHEELS

1

87721676

AXLE

Front

1шт.

2

87265738

SLIDE

axle adjustment, RF

1шт.

2

87265739

SLIDE

axle adjustment, LF

1шт.

Not Shown

1шт.

3

86986933

THRUST WASHER,95mm ID x 149mm OD x 6.26mm Thk

1шт.

4

86986935

STEERING ARM

Steering, RH

1шт.

4

86986934

STEERING ARM

Steering, LH

1шт.

Not Shown

1шт.

5

BN312604

SPACER

1шт.

6

BN302052

WASHER,20.32mm ID x 139.7mm OD

1шт.

7

87529307

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm, HDN, DOR

6шт.

8

87342019

BOLT,Hex, M20 x 2.5 x 40mm, Class 10.9, Full Thd, DOR

1шт.

9

BN302051

NIPPLE, LUBE,M8 x 1, Straight

NIPPLE 8 mm x 1 Straight

3шт.

10

BN69951

CAP

Grease

3шт.

11

1316827C1

BUSHING,25.4mm ID x 41.27mm OD x 22.23mm W

Self-Aligning 41.26 x 25.4 x 22.25

2шт.

12

BN301998

DOWEL

Hollow

1шт.

13

87540210

SLIDE

Bar, Axle

1шт.

14

87342045

BOLT,Hex, M20 x 2.5 x 55, Class 10.9, DOR

1шт.

15

BN320759

STOP

tab, axle adjust

1шт.

16

892-11020

LOCK WASHER,M20

1шт.

17

87635862

BOLT,Hex, M20 x 35mm, Cl 10.9

Hex, M20 x 35, Full Thrd, 10.9 DOR

1шт.

18

342939A1

SLEEVE

dowel, hollow

2шт.

19

87268646

BOLT,M20 x 2.5 x 100mm, Cl 12.9

M20-2.5 X 100, 12PT, 12.9, DRL

2шт.

20

87024336

NUT,M20 x 2.5, Cl 10

2шт.

21

343883A1

SEAL,90mm ID x 110mm OD x 8mm Thk

1шт.

22

87342001

BOLT,Hex, M20 x 90, Class 10.9, DOR

2шт.

23

NSS

NOT SOLD SEPARAT

Pivot

1шт.

Refer to 41.200.01

1шт.
