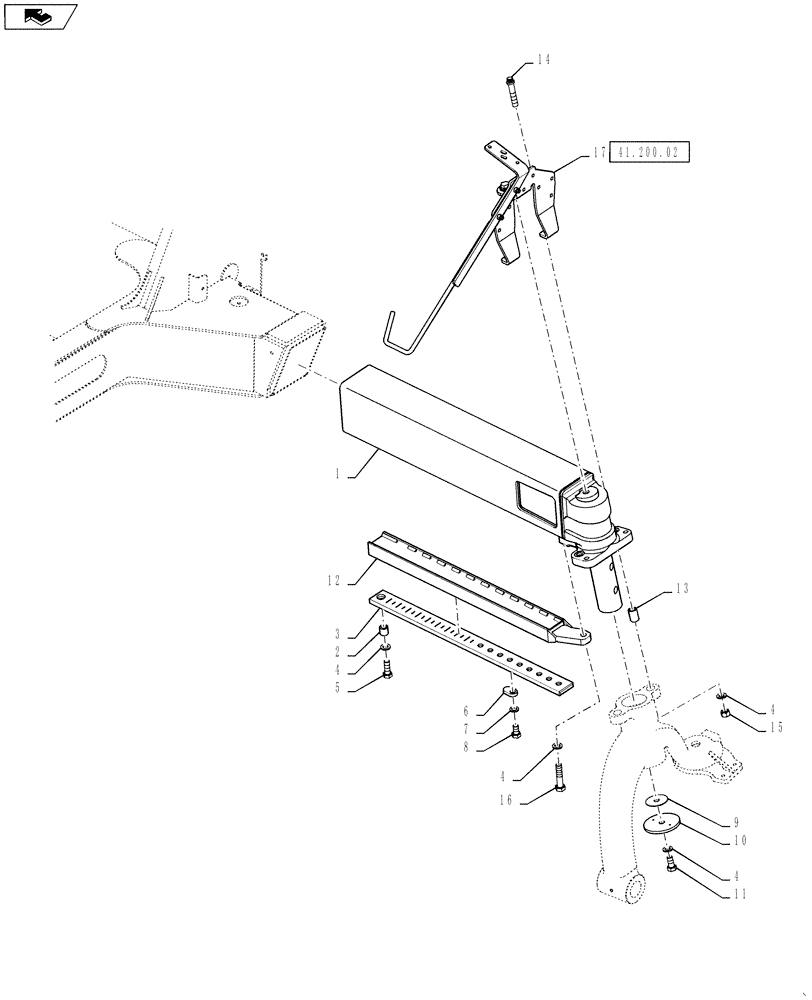

Запчасти Case IH 3330 (44.100.01) - AXLE GROUP, NON STEER (44) - WHEELS

1

87721678

AXLE

Rear

1шт.

2

BN301998

DOWEL

Hollow

1шт.

3

87540210

SLIDE

Bar, Axle

1шт.

4

87529307

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm, HDN, DOR

6шт.

5

87342045

BOLT,Hex, M20 x 2.5 x 55, Class 10.9, DOR

1шт.

6

BN320759

STOP

tab, axle adjust

1шт.

7

892-11020

LOCK WASHER,M20

1шт.

8

87635862

BOLT,Hex, M20 x 35mm, Cl 10.9

Hex, M20 x 35, Full Thrd, 10.9 DOR

1шт.

9

BN312604

SPACER

AXLE

1шт.

10

BN302052

WASHER,20.32mm ID x 139.7mm OD

1шт.

11

87342019

BOLT,Hex, M20 x 2.5 x 40mm, Class 10.9, Full Thd, DOR

1шт.

12

87268928

SLIDE

Axle adjuster, LR

1шт.

12

87268927

SLIDE

Axle adjuster, RR

1шт.

Not Shown

1шт.

13

342939A1

SLEEVE

dowel, hollow

2шт.

14

87268646

BOLT,M20 x 2.5 x 100mm, Cl 12.9

M20-2.5 X 100, 12PT, 12.9, DRL

2шт.

15

87024336

NUT,M20 x 2.5, Cl 10

2шт.

16

87342001

BOLT,Hex, M20 x 90, Class 10.9, DOR

2шт.

17

NSS

NOT SOLD SEPARAT

NON PIVOT

1шт.

Refer to 41.200.02

1шт.
