Запчасти Case IH 3330 (41.204.01) - STEERING, CONTROL (41) - STEERING

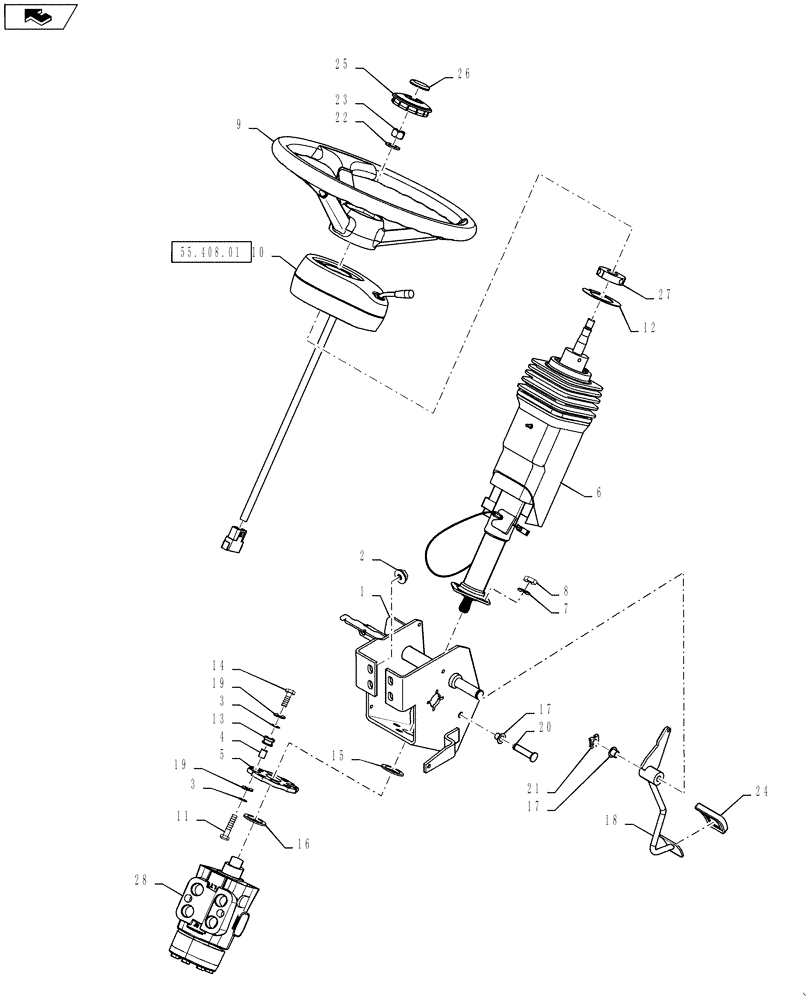

Схема запчастей Case IH 3330 - (41.204.01) - STEERING, CONTROL (41) - STEERING
21
25
home
6
26
1
15
4
14
18
55.408.01
2
22
13
16
28
24
7
11
17
8
20
27
19
17
12
19
10
23
3
9
3
5

Артикул

Название

Примечание

Количество

1

84169079

BRACKET

front console

1шт.

2

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

3

329677A1

RETAINER,9.09mm ID x 19.87mm OD x 0.38mm Thk

BOLT

8шт.

4

295478A1

SPACER

STEERING HAND PUMP

4шт.

5

366073A1

PLATE

STEERING HAND PUMP

1шт.

6

406697A2

STEERING COLUMN

1шт.

7

140017

WASHER,M10 x 20mm OD x 2mm Thk

4шт.

8

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

9

301200A1

STEERING WHEEL

deluxe

1шт.

9

359033A1

STEERING WHEEL

Black Leather, Luxury Cab

1шт.

Not Shown

1шт.

10

412350A1

ASSEMBLY

Pod Self Cancel Turn

1шт.

11

370105A2

BOLT

LOW PROFILE RD HD S

4шт.

12

1977448C2

WASHER

Support, Boot

1шт.

13

434177A1

ISOLATOR

CAC, center bended

4шт.

14

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

4шт.

15

307559A1

SEAL,25mm ID x 48mm OD x 2mm Thk

STEERING SHAFT, NOIS

1шт.

16

296775A2

SEAL

STEERING SHAFT, NOIS

1шт.

17

1533540C1

BUSHING,12mm ID x 14mm OD x 12mm L

Plastic

2шт.

18

295191A3

PEDAL

FOOT RELEASE

1шт.

19

496-81028

WASHER,10.31mm ID x 31.75mm OD x 4.06mm Thk

8шт.

20

295192A1

PIN,12mm OD x 62.5mm L

FOOT RELEASE PEDAL

1шт.

21

277059A1

CLIP

12MM

1шт.

22

87016605

WASHER,15.5mm ID x 28mm OD x 2.5mm Thk

1шт.

23

86639148

NUT,M14 x 1.5, Cl 8

1шт.

24

323657A1

PAD

FOOT RELEASE PEDAL

1шт.

25

361024A3

CAP

Incl 26

1шт.

26

87613502

INSERT

CASE IH

1шт.

27

253679A1

RING

MAGNET

1шт.

28

87269664

PUMP

STEERING, SERIES 10

1шт.

Выбрано товаров: 30
