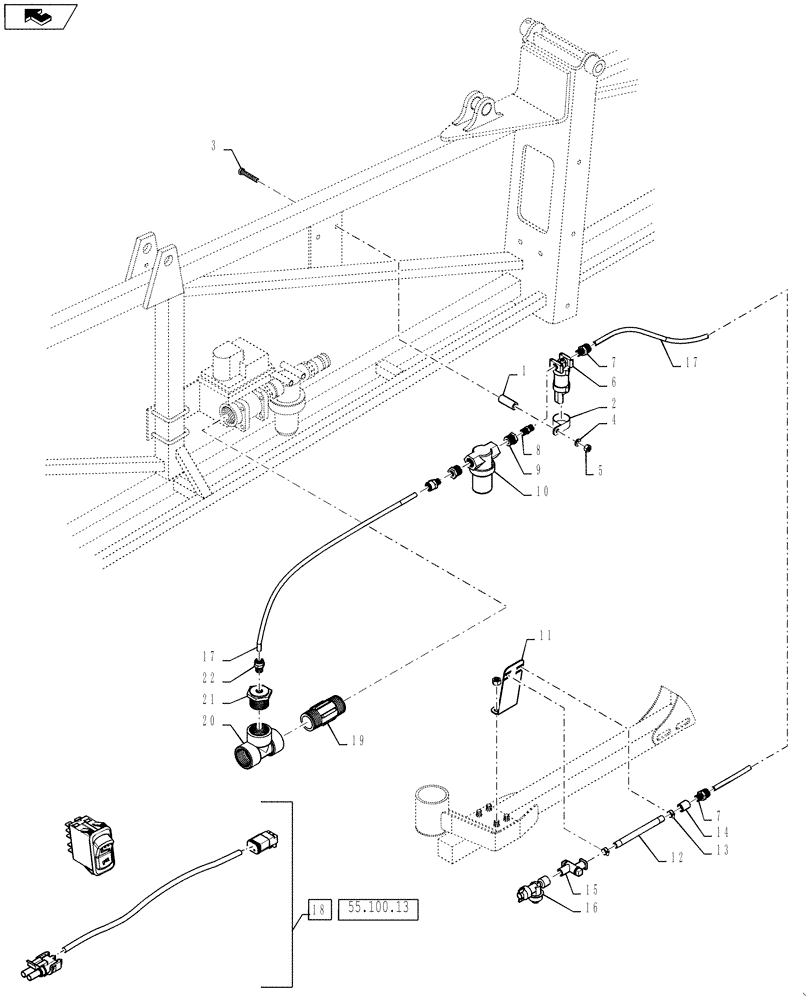

Запчасти Case IH 3330 (39.105.12) - FENCE ROW GROUP, 100 & 120 BOOM, BSN Y9T026406 (39) - FRAMES AND BALLASTING

1

BN300892

TUBE

spacer, 3/8 Bolt

2шт.

2

515-23365

CLAMP,1 7/16", Insul, 3/8" Bolt

2шт.

3

BN50272

BOLT

3/8-16 X 2.75, Stainless Steel

2шт.

4

BN50146

WASHER,3/8", Stainless

2шт.

5

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

6

343778A1

SOLENOID

valve, 1/4" NPT

2шт.

7

BN2399403

ADAPTER

1/4" MPT x 3/8" OD Tube, Push Lock Fitting

6шт.

8

86986808

NIPPLE

1/4" Short, Poly

2шт.

9

BN304521

REDUCER

1/2 x 1/4 Red, Poly

4шт.

10

87565152

FILTER STRAINER,1/2"x 1/2"Clear Bowl Strainer w/50 Mesh Screen

1/2" FP, 50 Mesh, Poly

2шт.

See Fig. 39.105.17 For Breakdown

1шт.

11

87380590

MOUNTING PLATE

Nozzle, Fence Row

2шт.

12

BN313361

NIPPLE,1/4" NPT x 6mm SS

NIPPLE

2шт.

13

BN324022

HOSE CLAMP

#8, Stainless Steel

4шт.

14

BN73015

COUPLING

1/4" NPT, Full, Stainless Steel

2шт.

15

BN313256

NOZZLE INJECTION

W/SWIVEL

2шт.

16

BN313255

NOZZLE INJECTION

W/CHECK VALVE

2шт.

17

BN2292088

AIR INTAKE TUBE

Air, Synflex 3/8" Black, Bulk

1шт.

18

NSS

NOT SOLD SEPARAT

ELECT GRP, FENCE ROW

1шт.

Refer to 55.100.13

1шт.

19

BN323762

NIPPLE

1.25 x 4", Poly

2шт.

20

BN73662

TEE

1-1/4", Poly

2шт.

21

BN320968

BUSHING,1-1/4" MPT x 3/8" FPT Reducing Bushing

RDCR,1.25MP.38FP,PP

2шт.

22

BN2399412

ADAPTER

Tube MC38038

2шт.
