(39.100.15) - SKID GROUP, BSN Y9T026406

Запчасти Case IH 3330 (39.100.15) - SKID GROUP, BSN Y9T026406 (39) - FRAMES AND BALLASTING

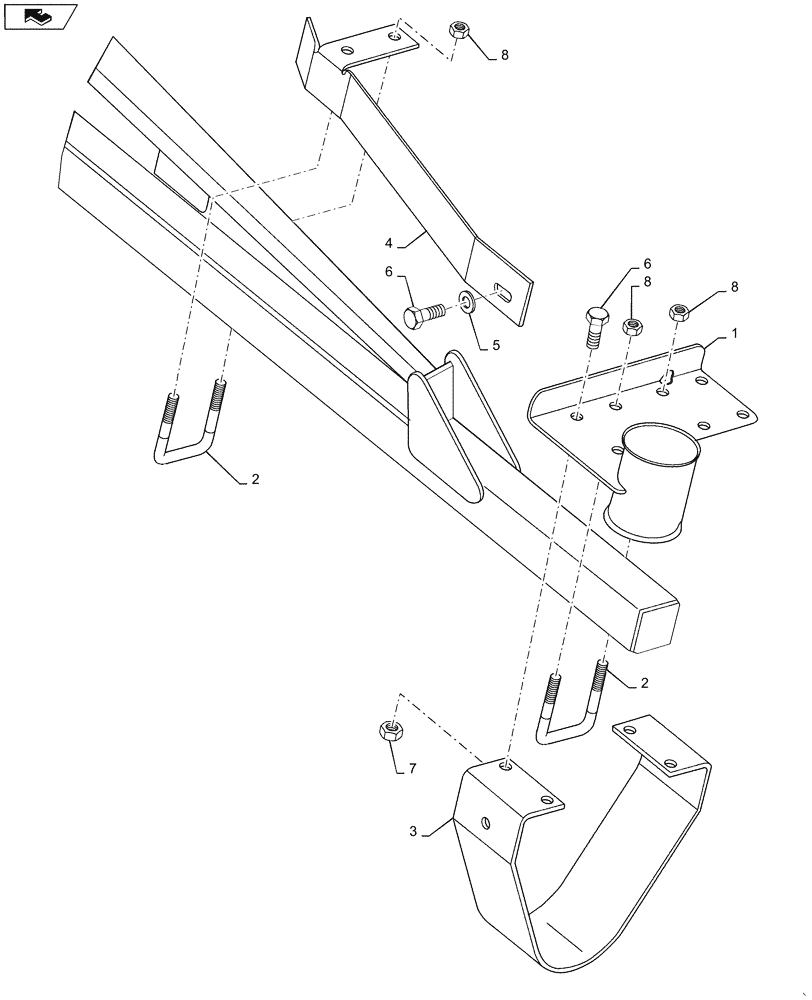

Схема запчастей Case IH 3330 - (39.100.15) - SKID GROUP, BSN Y9T026406 (39) - FRAMES AND BALLASTING
6
2
5
8
3
4
home
8
7
8
6
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87266616

MOUNTING PLATE

Outer Left Frame Drop

1шт.

1

87266615

MOUNTING PARTS

Outer right frame drop

1шт.

Not Shown

1шт.

2

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

3шт.

3

BN313335

SKID/SHOE

BOOM BREAKAWAY

1шт.

4

BN319660

GUARD

LH OUTER BOOM SKID

1шт.

4

BN319662

GUARD

RH OUTER BOOM SKID

1шт.

Not Shown

1шт.

5

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

1шт.

6

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

5шт.

7

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

5шт.

8

87343970

NUT,3/8"-16, G8, DOR

6шт.
