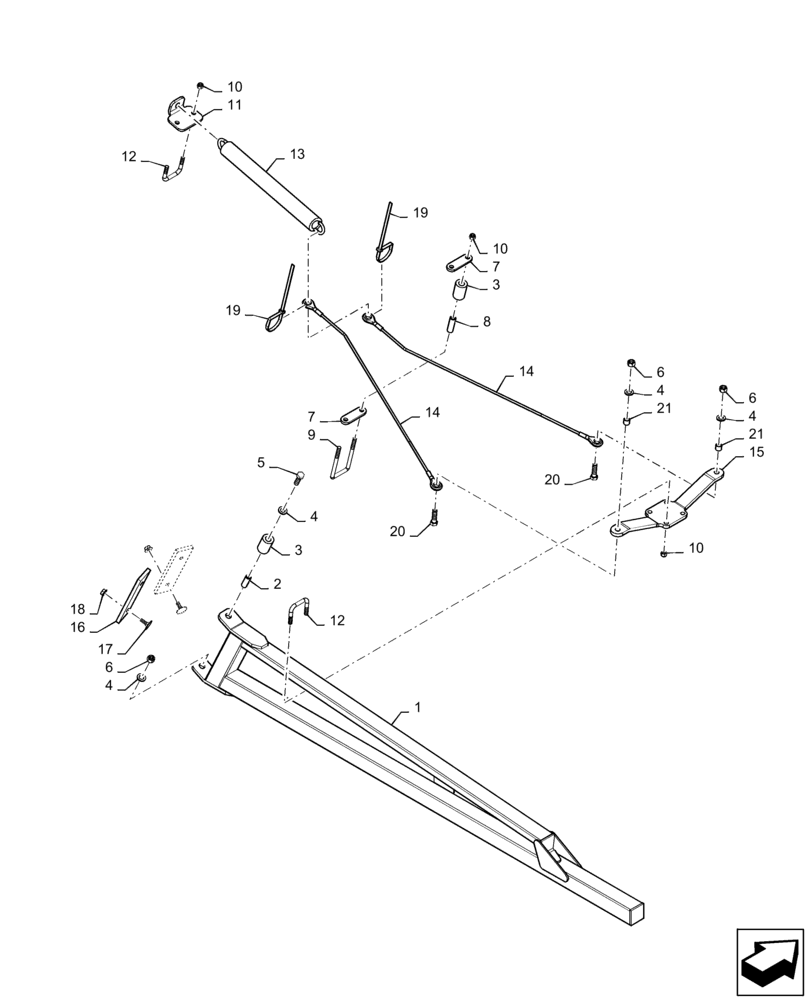

Запчасти Case IH 3330 (39.100.05) - BOOM BREAKAWAY ASSEMBLY - 80 (39) - FRAMES AND BALLASTING

1

BN325289

FRAME

Boom, Breakaway

1шт.

2

BN304675

NUT

M12 X 40, Connect Nut

1шт.

3

87265981

ROLLER,31.75mm OD x 48mm L

3шт.

4

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

5

87342014

BOLT,M12 x 1.75 x 35mm, Class 10.9

1шт.

6

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

3шт.

7

BN308039

PLATE

Spacer

2шт.

8

BN310055

BUSHING,9.78mm ID x 16mm OD x 49.28mm L

2шт.

9

BN305434

U-BOLT

2" ID

1шт.

10

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.

11

84217032

PLATE

Spring

1шт.

12

BN68062

U-BOLT

3/8-Square, 2.06" ID

3шт.

13

BN305410

SPRING

1.67 x 0.283 x 12

1шт.

14

87271165

CABLE,713mm L

Breakaway, 28"

2шт.

15

BN309505

ANGLE

Breakaway

1шт.

16

BN312172

BUMPER

Breakaway

2шт.

17

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

4шт.

18

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

4шт.

19

BN570007

STRAP

14"

2шт.

20

87022683

BOLT,Hex, M12 x 40mm, Cl 10.9

2шт.

21

47636886

BUSHING

.625 OD x 05 ID

2шт.
