(39.100.02[02]) - AUTOBOOM WHEEL KIT 90/100

Запчасти Case IH 3330 (39.100.02[02]) - AUTOBOOM WHEEL KIT 90/100 (39) - FRAMES AND BALLASTING

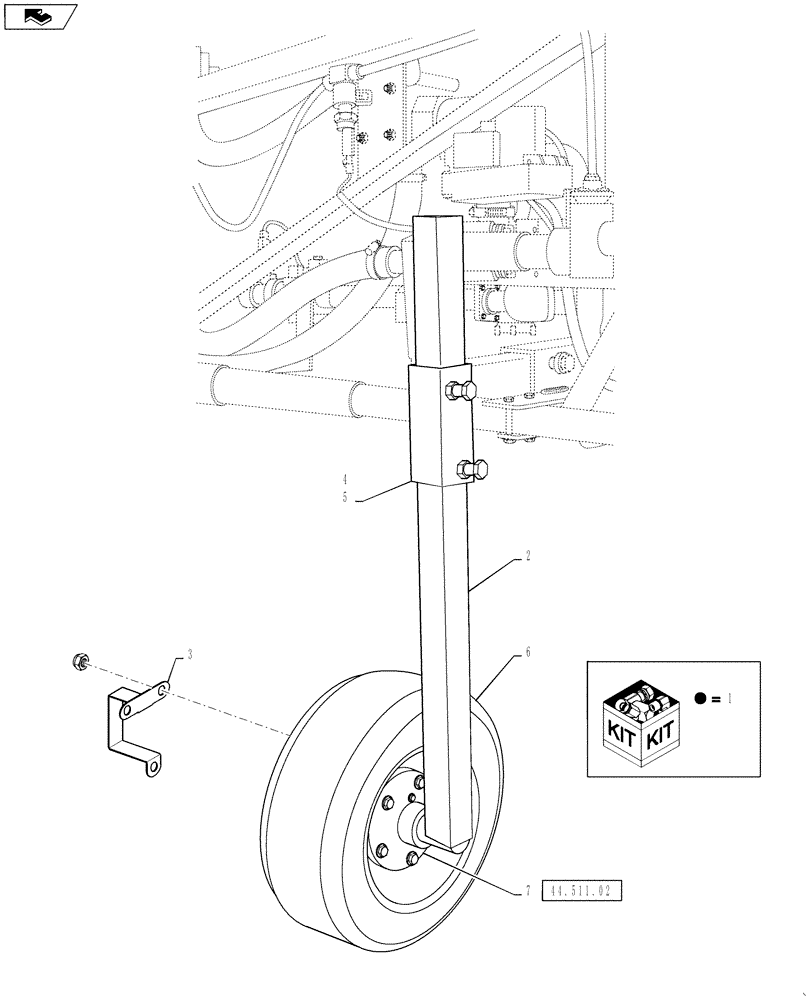

Схема запчастей Case IH 3330 - (39.100.02[02]) - AUTOBOOM WHEEL KIT 90/100 (39) - FRAMES AND BALLASTING
5
7
4
6
1
3
2
1
home
44.511.02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87487173

KIT

Autoboom Wheel, 90/100

1шт.

2

87719426

BRACKET, SUPPORTING

Axle, 24", Straight

2шт.

3

87720308

BRACKET, SUPPORTING

Hub Retainer

2шт.

4

84132941

BRACKET

RECEIVER, AXLE, LH

1шт.

5

84132942

BRACKET

RECEIVER, AXLE, RH

1шт.

6

87719425

TYRE/TIRE

Smooth, 4.8 x 8, 5 Bolt Rim, No Flat

2шт.

7

87711682

HUB

5 Bolt

2шт.
