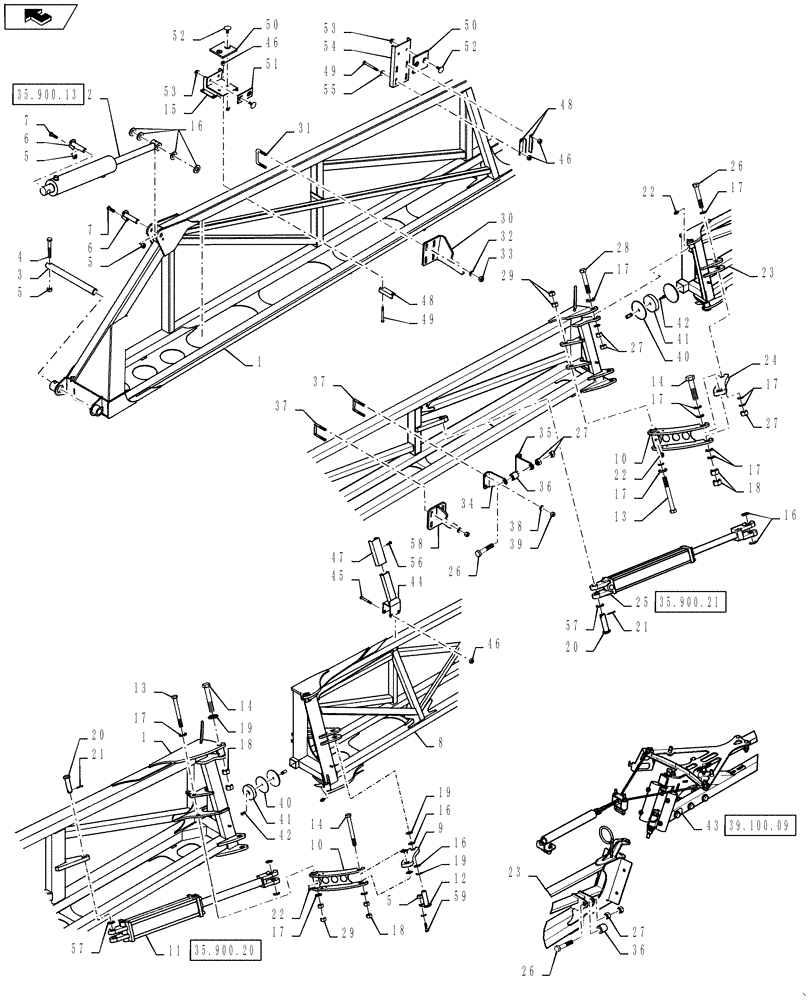

Запчасти Case IH 3330 (39.100.01[06]) - INNER BOOM MOUNTING, LH, 120 BOOM, ASN YAT028323 (39) - FRAMES AND BALLASTING

1

87397252

BOOM

Inner, LH

1шт.

2

87566312

HYDRAULIC CYLINDER,Double Acting, 41.27mm Rod, 368.3mm Stroke

3.50 x 14.50 x 1.62, Complete

1шт.

See Fig. 35.900.13

1шт.

3

BN326079

PIN,38.1mm OD x 408.94mm L

BOOM PIVOT

1шт.

4

87698857

BOLT,Hex, M10 x 80mm, Cl 10.9

M10 X 80 10.9 DOR

1шт.

5

87344003

NUT,M10-1.5, 10, DOR

4шт.

6

BN305621

PIN

WELDMENT

2шт.

7

87315279

BOLT,Hex, M10 x 35mm, Cl 10.9

2шт.

8

84305028

BOOM

Middle LH

1шт.

9

84306382

ARM

Single

1шт.

10

84126409

ARM

Double

2шт.

11

87446384

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3 1/2" x 16" Monarch 3000 psi

1шт.

See Fig. 35.900.20

1шт.

12

BN307223

PIN,25.4mm OD x 85.85mm L

Locking, 85mm long

1шт.

13

87564718

BOLT

3/4-10 X 7, GR 5 DOR

2шт.

14

87698751

BOLT

1-8 X 6 GRD 8 DOR

4шт.

15

87666131

SUPPORT

Upper Cradle, LH

1шт.

16

87564721

WASHER,1.02" ID x 1.5" OD x 0.12" Thk

1.016X1.5X0.12 CST DOR

16шт.

17

87564720

WASHER,0.78" ID x 1.25" OD x 0.07" Thk

10шт.

18

87343673

NUT

1.000-8 GR8

8шт.

19

87564722

WASHER,1.02" ID x 1.5" OD x 0.07" Thk

1.016 X 1.50 X .075 CST DOR

6шт.

20

87735776

PIN,25.4mm OD x 111.5mm L

1" x 3.6" fl, heat treated

2шт.

21

432-1228

COTTER PIN,3/16" x 1 3/4"

2шт.

22

219-8

LUBE NIPPLE,1/4" - 28 NPTF

6шт.

23

87527651

BOOM

OUTER LH

1шт.

24

84126408

ARM

Single

1шт.

25

87505171

HYDRAULIC CYLINDER,31.75mm Rod, 406.4mm Stroke

2 1/2" x 16" Monarch 3000 psi 1 1/4" rod

1шт.

See Fig. 35.900.21

1шт.

26

87342942

BOLT

3/4-10 X 3-3/4 8 DOR

3шт.

27

87310317

NUT

3/4-10, GR 8, DOR

10шт.

28

87698750

BOLT

3/4-10 X 4-1/2, GR8, DOR

2шт.

29

87343671

NUT

3/4-10 GR 5 DOR

4шт.

30

84204419

CRADLE

Cradle, Inner Boom, LH

1шт.

31

1404

U-BOLT

us 1/4" x 3 1/8" w x 4 1/4" d 1 1/4" thread gr2

2шт.

32

87528989

WASHER,12.2mm ID x 30mm OD x 2.5mm Thk

M12 x 30 x 2.5 DOR

4шт.

33

87343983

NUT

Hex, 1/2"-13, GC

4шт.

34

87543856

PLATE

INNER BOOM ROLLER LH

1шт.

35

87543857

PLATE

INNER BOOM ROLLER RH

1шт.

36

87503700

ROLLER

19.45 mm id x 38.1 mm od x 36 mm long

2шт.

38

87529298

WASHER,11mm ID x 21mm OD x 2mm Thk

11 x 21 x 2 mm, CST, DOR

8шт.

39

87343974

NUT,Prev Torque, 3/8" - 16, Gr C, DOR

8шт.

40

87501591

WASHER,10.3mm ID x 101.6mm OD x 2.08mm Thk

10 mm id 102 mm od 1.9 mm

6шт.

41

87501590

BUMPER

poly 89 mm od x 19 mm thick

2шт.

42

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

43

NS

NOT SERVICED

Breakaway Assembly

1шт.

See Fig. 39.100.09

1шт.

44

87621178

STOP

BOOM BREAKAWAY

1шт.

45

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

46

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

10шт.

47

87573707

CHANNEL

snap-on 1" x 2" x 6"

1шт.

48

87666126

MOUNTING PARTS

PLATE, CRADLE

4шт.

49

86980410

BOLT,Hex, M10 x 100mm, Cl 8.8

M10 1.5 X 100, 8.8, DOR

8шт.

50

BN320995

PAD

BOOM REST, BOTTOM

2шт.

51

BN319335

PAD

BOOM REST

1шт.

52

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

6шт.

53

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

6шт.

54

87705378

PLATE

BOOM STOP

1шт.

55

86981677

WASHER,11mm ID x 30mm OD x 2.5mm Thk

4шт.

56

84206102

SCREW,7/8" - 24

12-24X7/8 HWH 4 TEK

2шт.

57

87529235

WASHER,1.06" ID x 2" OD x 0.21" Thk

1.0625 x 2 x 0.209, HTS, DOR

2шт.

58

84192693

CRADLE

Outer Boom

1шт.

59

87344194

BOLT,Hex, M10 x 35mm, Cl 10.9

Full Flange M10 x 35 GR 10.9 DOR

1шт.

37

BN319919

U-BOLT

SQ BND 2.06 IDX3/8, Start Year: 01-AUG-09

4шт.
