(35.900.11) - HYDRAULIC GROUP, HITCH 120 BOOM

Запчасти Case IH 3330 (35.900.11) - HYDRAULIC GROUP, HITCH 120 BOOM (35) - HYDRAULIC SYSTEMS

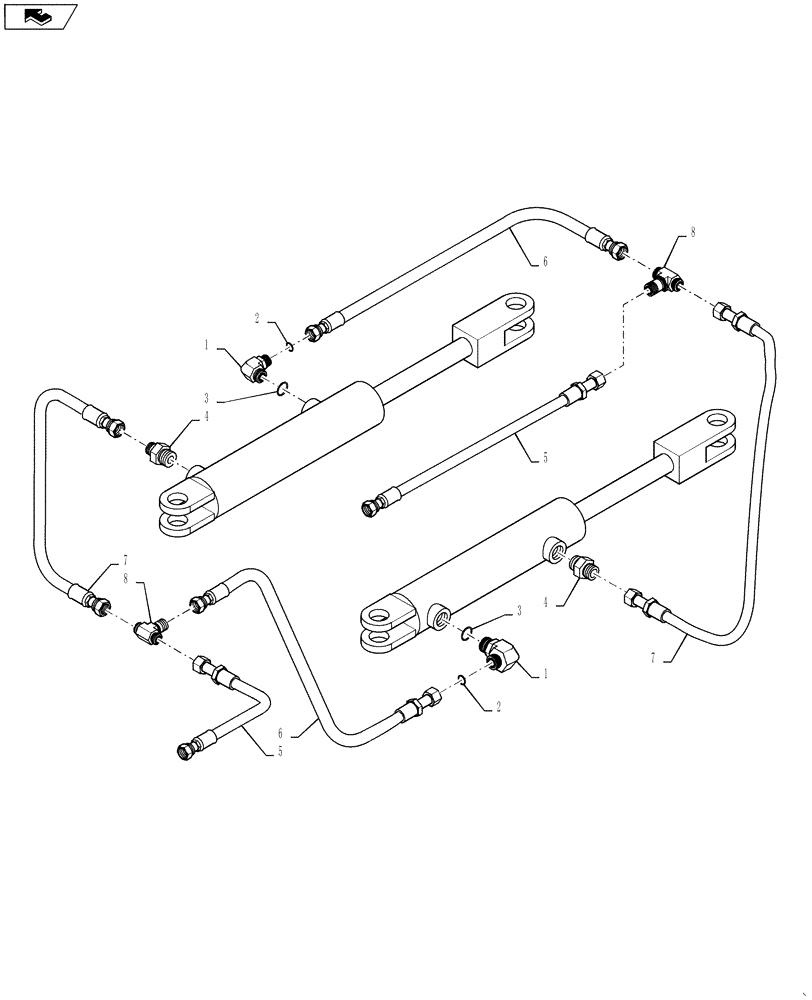

Схема запчастей Case IH 3330 - (35.900.11) - HYDRAULIC GROUP, HITCH 120 BOOM (35) - HYDRAULIC SYSTEMS
7
4
2
3
5
1
4
home
8
1
5
3
2
8
6
7
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

2шт.

2

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

3

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

4

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

2шт.

5

BN313336

HOSE

-6 X 30"

2шт.

6

86986082

HOSE

6 x 50"

2шт.

7

BN313337

HOSE

-6 X 50"

2шт.

8

BN302512

FITTING

6MOR-6MOR-6MOR

2шт.

Выбрано товаров: 8
