(35.900.10[01]) - HYDRAULIC GROUP, OUTER 120 BOOM, BSN YBT029776

Запчасти Case IH 3330 (35.900.10[01]) - HYDRAULIC GROUP, OUTER 120 BOOM, BSN YBT029776 (35) - HYDRAULIC SYSTEMS

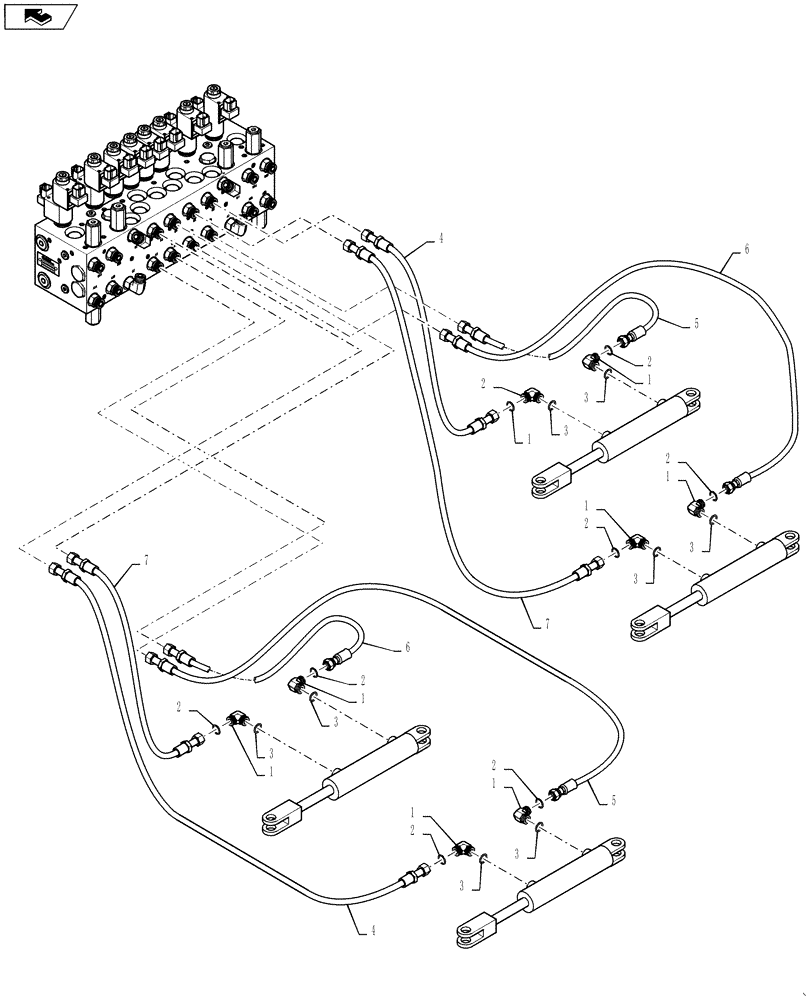

Схема запчастей Case IH 3330 - (35.900.10[01]) - HYDRAULIC GROUP, OUTER 120 BOOM, BSN YBT029776 (35) - HYDRAULIC SYSTEMS
2
3
6
3
1
3
2
4
3
3
7
2
1
2
home
7
5
1
3
1
2
3
2
1
1
2
6
1
1
2
4
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN302554

FITTING

11/16-16 ORFS x 3/4-16 ORB x 90 Deg

8шт.

2

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8шт.

3

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

8шт.

4

87600247

HOSE

6 x 330"

2шт.

5

87600246

HOSE

6 x 310"

2шт.

6

87471716

HYDRAULIC HOSE,9.53mm ID x 13843mm L, SAE 100R17

-6 X13843 MM

2шт.

7

87471717

HYDRAULIC HOSE,9.53mm ID x 14351mm L, SAE 100R17

-6 X 14351 MM

2шт.

Выбрано товаров: 7
