(35.900.09) - HYDRAULIC GROUP, INNER 120 BOOM

Запчасти Case IH 3330 (35.900.09) - HYDRAULIC GROUP, INNER 120 BOOM (35) - HYDRAULIC SYSTEMS

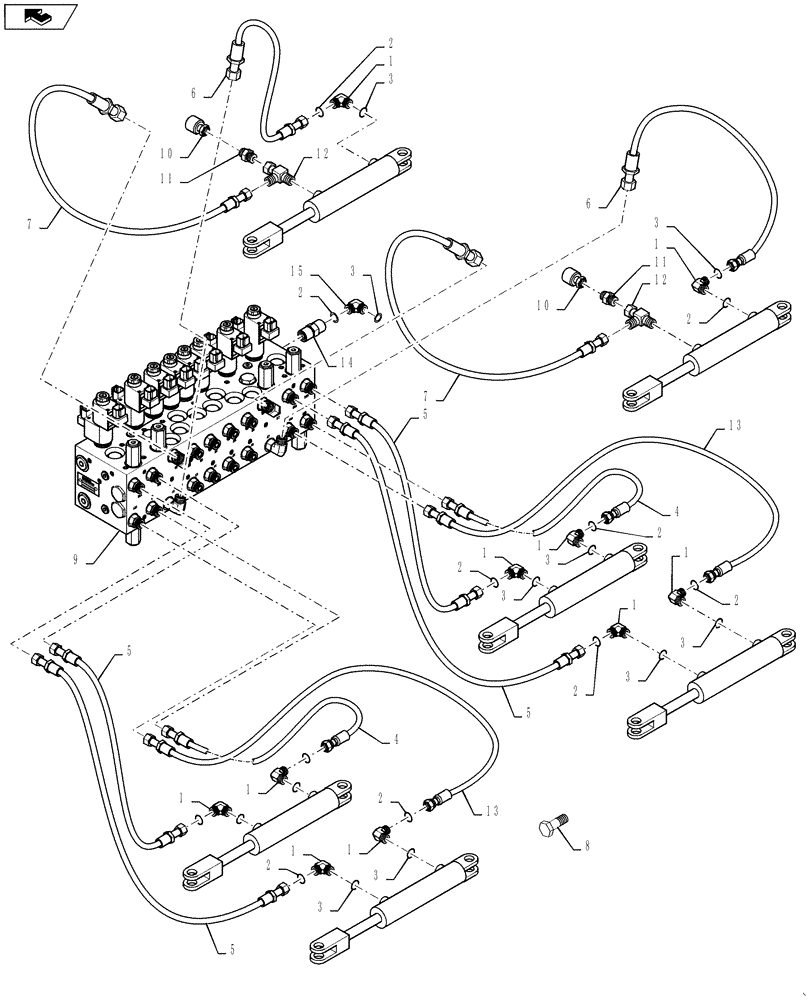

Схема запчастей Case IH 3330 - (35.900.09) - HYDRAULIC GROUP, INNER 120 BOOM (35) - HYDRAULIC SYSTEMS
5
13
1
12
4
11
2
2
5
2
2
1
1
2
7
3
3
3
2
6
5
3
3
1
2
5
1
2
1
6
1
3
13
15
2
9
3
14
10
10
11
home
3
4
1
1
12
8
1
3
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

10шт.

2

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

3

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

4

342591A1

HOSE ASSY.

6 x 40"

2шт.

5

BN320874

HOSE ASSY.,9.53mm ID x 1625.6mm L, SAE 100R17

-6 X 64

4шт.

6

BN307875

HOSE ASSY.

2шт.

7

BN307872

HOSE ASSY.

2шт.

8

86980419

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

9

87749947

VALVE

8-Bank, With Fittings (See Fig. 35.900.21)

2шт.

10

87585943

ACCUMULATOR

10 CU IN HYDAC

1шт.

11

BN314785

SWIVEL CONNECTION

PARK6 F65OL-S

2шт.

12

BN302583

FITTING

6MOR-6MOR-6MBX

2шт.

13

BN317622

HOSE ASSY.,9.53mm ID x 1498.6mm L, SAE 100R17

-6 X 59

2шт.

14

84208068

CHECK VALVE

1 PSI

1шт.

15

BN302444

ELBOW UNION

Union Elbow Fitting, 8 MOR - 8 FORX90

1шт.
