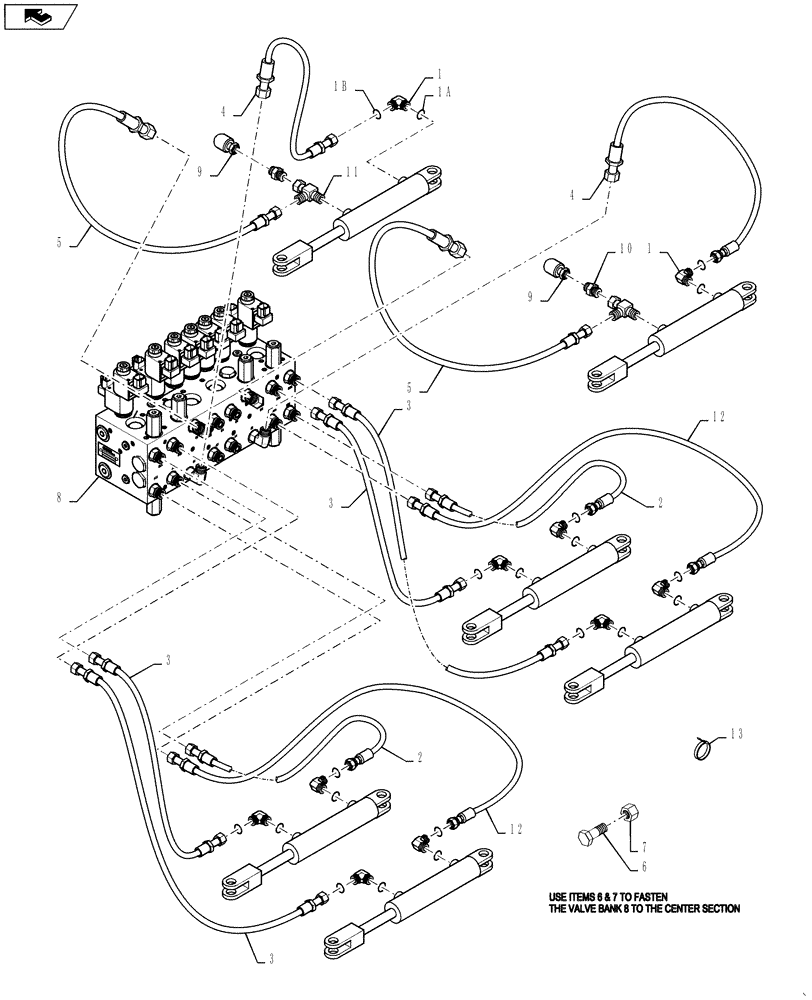

Запчасти Case IH 3330 (35.900.08) - HYDRAULIC GROUP, 120 BOOM (35) - HYDRAULIC SYSTEMS

1

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

10шт.

1a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

1b

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

2

342591A1

HOSE ASSY.

6 x 40"

2шт.

3

BN320874

HOSE ASSY.,9.53mm ID x 1625.6mm L, SAE 100R17

-6 X 64

4шт.

4

BN307875

HOSE ASSY.

2шт.

5

BN307872

HOSE ASSY.

2шт.

6

86980432

BOLT,Hex, M12 x 120mm, Cl 8.8

M12-1.75 X 120, 8.8, DOR

2шт.

7

100038

NUT,M12 x 1.75, Cl 8

2шт.

8

87270169

HYDRAULIC VALVE

6-Bank, With Fittings

1шт.

Refer to 35.900.03

1шт.

9

87585943

ACCUMULATOR

10 CU IN HYDAC

2шт.

10

BN314785

SWIVEL CONNECTION

PARK6 F65OL-S

2шт.

11

BN302583

FITTING

6MOR-6MOR-6MBX

2шт.

12

BN317622

HOSE ASSY.,9.53mm ID x 1498.6mm L, SAE 100R17

-6 X 59

2шт.

13

BN570007

STRAP

BLK ONLY .12-4.0BND

20шт.
