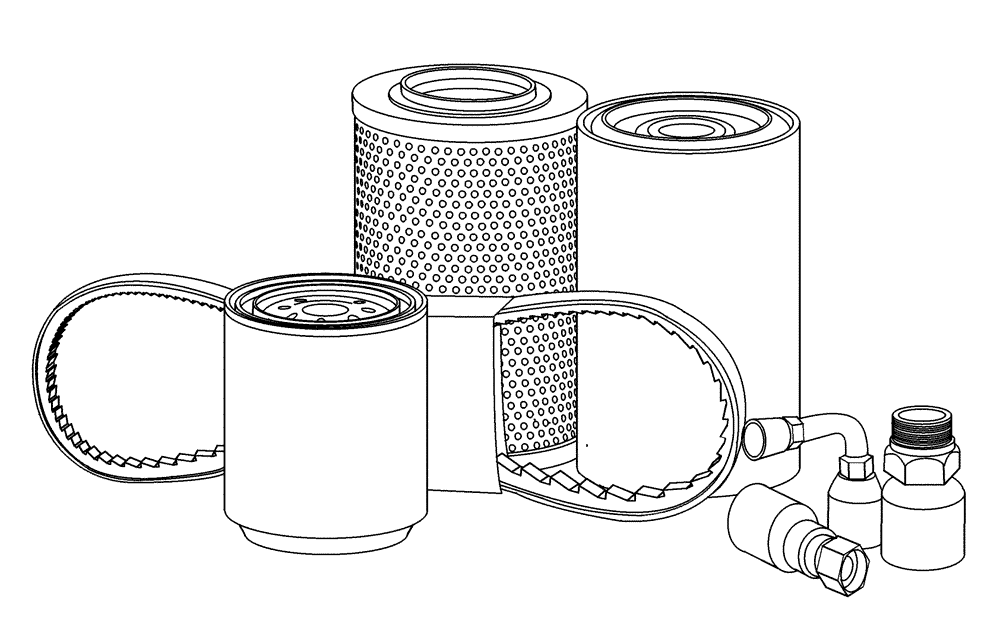

Запчасти Case IH 3330 (00.100.01[02]) - INITIAL STOCKING LIST (ISL) 120 BOOM (00) - GENERAL & PICTORIAL INDEX

LIST A

Parts Required For Preventative Maintenance

1шт.

1

87671762

BOOM,106" Long, 6 Holes, 20" Nozzle Spacing

Spraybar, 6 Nozzles, 20" Nozzle Spacing, 106" Long

2шт.

2

87671763

BOOM,85" Long, 5 Holes, 20" Nozzle Spacing

Spraybar, 5 Nozzles, 20" Nozzle Spacing, 85" Long

2шт.

3

87671764

BOOM,64-1/2" Long, 4 Holes, 20" Nozzle Spacing

Spraybar, 4 Nozzles, 20" Nozzle Spacing, 65" Long

2шт.

4

87696872

BOOM,106" Long, 7 Holes, 20/30" Nozzle Spacing

Spraybar, 7 Nozzles, 20"/30" Nozzle Spacing, 106" Long

2шт.

5

87696871

BOOM,95" Long, 7 Holes, 20/30" Nozzle Spacing

Spraybar, 7 Nozzles, 20"/30" Nozzle Spacing, 95" Long

2шт.

6

87696870

BOOM,85" Long, 6 Holes, 20/30" Nozzle Spacing

Spraybar, 6 Nozzles, 20"/30" Nozzle Spacing, 85" Long

1шт.

7

87696869

BOOM,75" Long, 6 Holes, 20/30" Nozzle Spacing

Spraybar, 6 Nozzles, 20"/30" Nozzle Spacing, 75" Long

1шт.

8

87696868

BOOM,82" Long, 5 Holes, 20/30" Nozzle Spacing

Spraybar, 5 Nozzles, 20"/30" Nozzle Spacing, 82" Long

1шт.

9

87696867

BOOM,65" Long, 7 Holes, 20/30" Nozzle Spacing

Spraybar, 7 Nozzles, 20"/30" Nozzle Spacing, 65" Long

1шт.

10

87630096

FITTING,QN Hose Shank - 1" SST X 1 1/4" Straight Shank

Strainer, 1TWS, 1.25HB, PP

12шт.

11

87630097

FITTING,QN Hose Shank - 1" SST x 1 1/4" Sweep 90 Degree

TWS, PP

4шт.

12

87630099

PLUG,1" SST

Flange Cap For Spraybar, Poly

4шт.

13

87630101

FITTING,Tee, PP

1-1/4" MPT x 1-1/4" MPT x 1-1/4 Hose Barb, Poly

5шт.

14

87630102

FITTING,Adapter Coupler Body - TWS X 1 1/4" NPT FE

Coupling, TWS, PP

4шт.

15

87630103

FITTING

Binding Ring, 1TWS, PP

12шт.

16

87630104

FITTING,TWS Male End Adapter Assy - 1.315" Tube

Split Sleeve, 1TWS, PP

12шт.

17

87630105

NUT

Nut, Quick, TWS, PP

12шт.

18

87638736

FITTING,QN 1" - Nut

Nut, Quick, TWS, PP

6шт.

19

431034A1

ARM

Assy, AHHC Sensor Control (Optional)

2шт.

20

86550597

BALL JOINT,1/4" -28 x 1

(Optional)

5шт.

21

86640147

SNAP RING,#31, Ext, E-Type

(Optional)

5шт.

22

87046644

ROD

WA ZND (Optional)

2шт.

23

86616339

SENSOR,CCW

Optional

1шт.

LIST B

Parts Required For Preventative Maintenance And Basic Repair

1шт.

24

87624339

SHUT-OFF VALVE

"Y" Style, Plunger, 2" Flange Ports

1шт.

25

87624338

SHUT-OFF VALVE

"T" Style, Plunger, 2.2"Flange Port x 2" Flange Port x 2" Flange Port

2шт.

26

87632830

SHUT-OFF VALVE

Electric Plunger, 2.2" Flange x 1" Flange, 3/4" Full Port, Poly

2шт.

27

87704806

BOOM

Weldment, w/Breakaway

1шт.

28

87704989

ARM

Breakaway

1шт.

29

87409039

SEAL KIT

Hydraulic Cylinder

1шт.

30

87577841

SEAL KIT

Cylinder Repair 2.5 in w/PSP Seals

1шт.

31

87622033

SEAL KIT

Cylinder

1шт.

32

87270349

SEAL KIT

Cylinder Seal

1шт.

33

87585943

ACCUMULATOR

10 CU 1500 PSI

1шт.

34

87632215

SHOCK ABSORBER

Steering Stabilize

1шт.

35

87733801

CHECK VALVE

PO Cartridge 5GPM

1шт.

36

87733822

SEAL KIT

Valve

1шт.

37

87488496

ROLLER

Cam, Poly (Optional)

1шт.

38

87492420

BUSHING

8 ID x 9.6 OD x 8 long, flange (Optional)

1шт.

39

87495287

HEX SOC SCREW,Shoulder, M6 - 8 x 25 mm, Cl 12.9

(Optional)

1шт.

40

84138914

HARNESS

Autofold 120ft Boom (Optional)

1шт.

41

84138963

CONTROL BLOCK

Node, Hyd Input, 120 ft Boom (Optional)

1шт.

84138963R

REMAN ELECT CONTROL

3330 (11/08-)

1шт.

84138963C

CORE-ELECTRONIC CONT

Return Number

1шт.

42

47774596

CONTROL BLOCK

Node, Autofold, 120 ft Boom (Optional)

1шт.

42

47774596R

REMAN ELECT CONTROL

Node, Autofold, 120 ft Boom (Optional)

1шт.

42

47774596C

CORE-ELECTRONIC CONT

Return Number

1шт.

43

87397313

SWITCH

One Touch Fold (Optional)

1шт.
