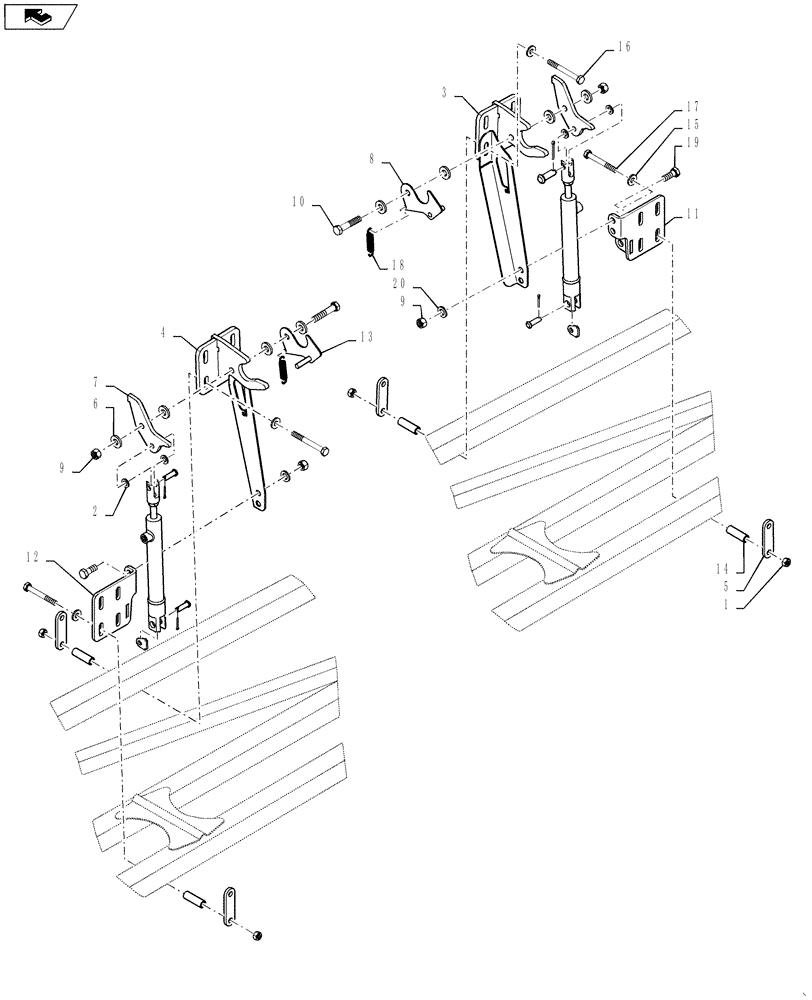

Запчасти Case IH 3330 (35.900.06[03]) - DIA KIT, HYDRAULIC LOCK, 120 BOOM (35) - HYDRAULIC SYSTEMS

0

84232927

KIT

Hydraulic Lock

1шт.

1

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

16шт.

2

87529298

WASHER,11mm ID x 21mm OD x 2mm Thk

11 X 21 X 2MM CST DOR

4шт.

3

87490993

CATCH

BOOM LOCK, LH

1шт.

4

87492067

CATCH

BOOM LOCK, RH

1шт.

5

84129544

PLATE

SPACER

8шт.

6

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 X 28 X 4 HDN DOR

8шт.

7

87491042

HOOK

BOOM LOCK

2шт.

8

87491099

HOOK

BOOM LOCK, WELDMENT, LH

1шт.

9

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

6шт.

10

86980426

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

2шт.

11

87497178

ANCHOR

WELDMENT, LH

1шт.

12

87497177

ANCHOR

WELDMENT, RH

1шт.

13

87492069

HOOK

BOOM LOCK, WELDMENT, RH

1шт.

14

84129543

TUBE SPACER

16шт.

15

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

16шт.

16

86980409

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

8шт.

17

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

8шт.

18

BN313580

SPRING

CRADLE LOCK

2шт.

19

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

20

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.
