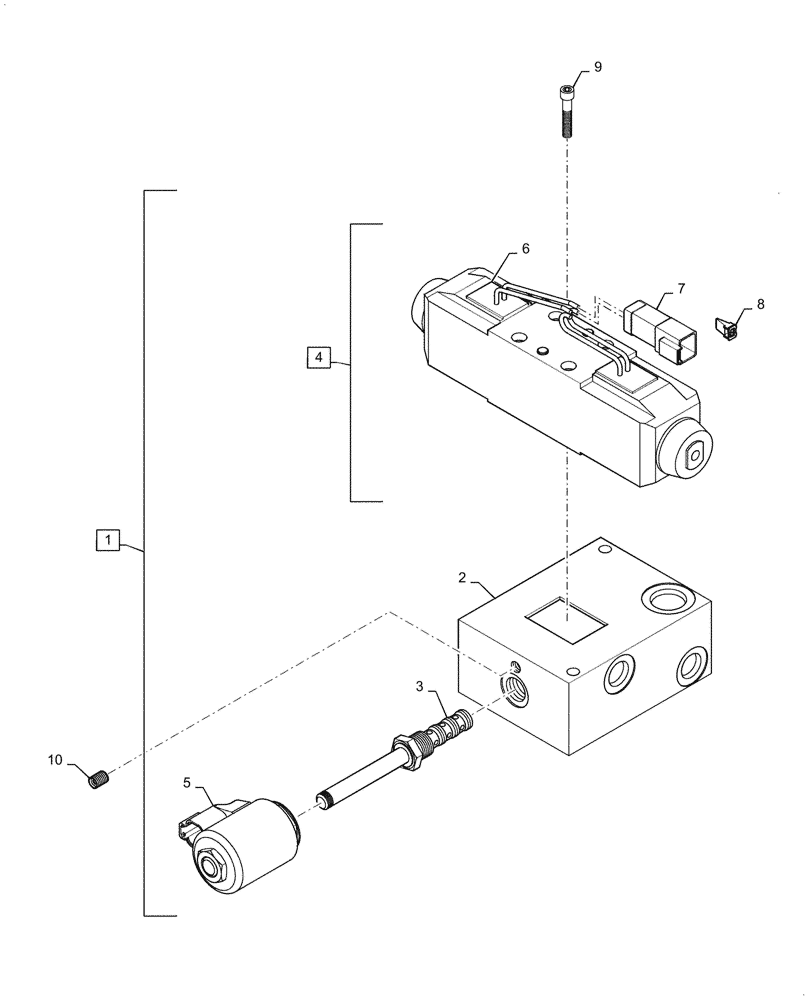

Запчасти Case IH 3330 (35.900.05[02]) - AUTOGUIDANCE VALVE (35) - HYDRAULIC SYSTEMS

1

87609218

VALVE

Autoguidance, Incl 2 - 9

1шт.

2

87726186

MANIFOLD VALVE

Autoguidance, Body

1шт.

3

87662363

HYDRAULIC VALVE

Solenoid Cartridge

1шт.

4

87662364

HYDRAULIC VALVE

Directional, Incl 6 - 8

1шт.

5

87623908

COIL ASSY.

12V, Solenoid Valve Coil with Integrated DT Series Male Connector

1шт.

6

87662365

COIL

12V, Directional Valve Coil, with Male Pins

2шт.

7

225326C1

ELEC CONNECTOR,Male, 4 Pin

1шт.

8

87694145

ELEC CONNECTOR

Wedge Lock

1шт.

9

281060

HEX SOC SCREW,HSH, #10 - 24 x 1-1/4"

4шт.

10

87475078

EXPANSION PLUG

6mm

5шт.
