(35.702.01) - HYDRAULIC GROUP, 60’ BOOM

Запчасти Case IH 3330 (35.702.01) - HYDRAULIC GROUP, 60’ BOOM (35) - HYDRAULIC SYSTEMS

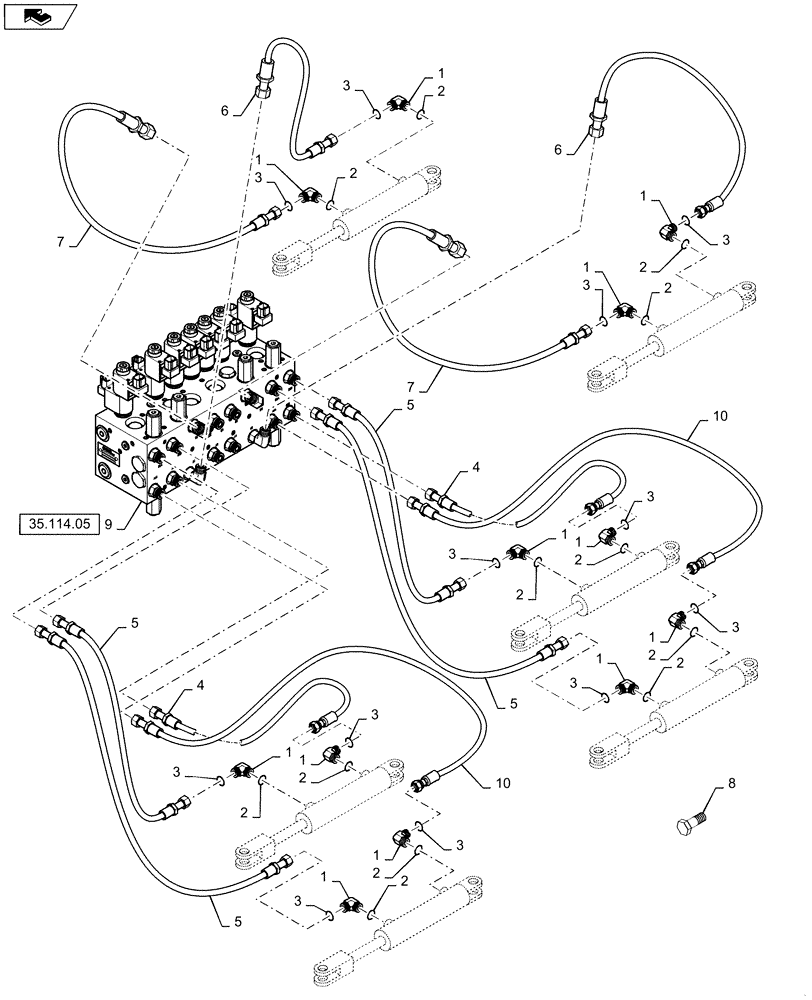

Схема запчастей Case IH 3330 - (35.702.01) - HYDRAULIC GROUP, 60’ BOOM (35) - HYDRAULIC SYSTEMS
3
1
5
2
9
1
4
5
2
1
6
5
2
3
3
2
3
3
10
2
1
10
2
1
7
1
3
2
1
3
5
4
3
3
home
2
8
1
6
35.114.05
1
2
3
1
3
3
7
1
7
1
2
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

12шт.

2

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

3

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

4

342591A1

HOSE ASSY.

6 x 40"

2шт.

5

BN320874

HOSE ASSY.,9.53mm ID x 1625.6mm L, SAE 100R17

-6 X 64"

4шт.

6

BN324327

HOSE ASSY.

-6 X 64"

2шт.

7

BN324328

HOSE ASSY.

-6 X 90"

2шт.

8

86980419

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

9

87746154

CONTROL VALVE

6-BANK W/FTGS, Start Year: 01-JAN-09

1шт.

9

87270169

HYDRAULIC VALVE

6-Bank, With Fittings, Years: -01-JAN-09

1шт.

10

84164481

HOSE,9.53mm ID x 1066mm L, SAE 100R17

-6 x 1066 MM

2шт.
