Запчасти Case IH 3330 (35.359.03) - SOLENOID VALVES (35) - HYDRAULIC SYSTEMS

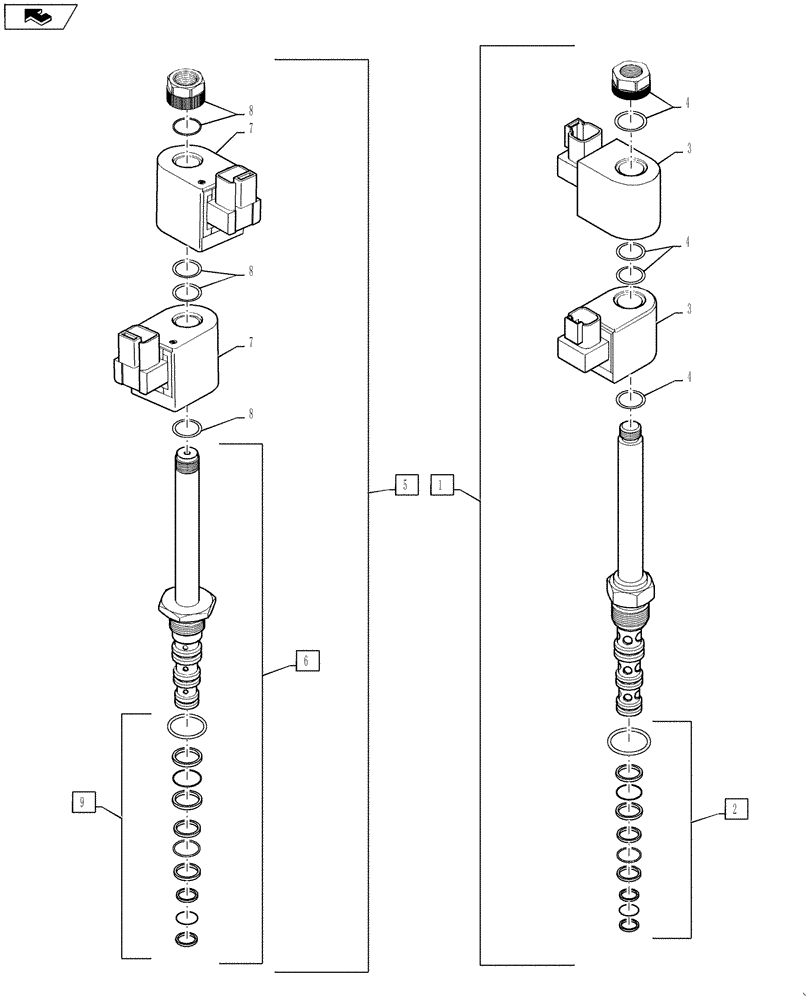

Схема запчастей Case IH 3330 - (35.359.03) - SOLENOID VALVES (35) - HYDRAULIC SYSTEMS
3
9
home
8
4
6
4
3
7
8
1
2
5
4
8
7

Артикул

Название

Примечание

Количество

1

87473320

VALVE

Proportional, Includes Ref. 2 - 4

1шт.

2

87473322

SEAL KIT

Solenoid Valve

1шт.

3

87478093

COIL

12 Volt

2шт.

4

87758995

RETAINER

Nut/O-ring Kit

1шт.

5

87758319

SOLENOID VALVE

Includes Ref. 6 - 9

1шт.

6

87758999

VALVE

Solenoid, Without Coil, Includes Ref. 8 & 9

1шт.

7

87758997

COIL

12 Volt

2шт.

8

87758998

RETAINER

Nut/O-ring Kit

1шт.

9

87472227

SEAL KIT

Solenoid Valve

1шт.

Выбрано товаров: 9
