Запчасти Case IH 3330 (35.300.05) - OIL TANK GROUP (35) - HYDRAULIC SYSTEMS

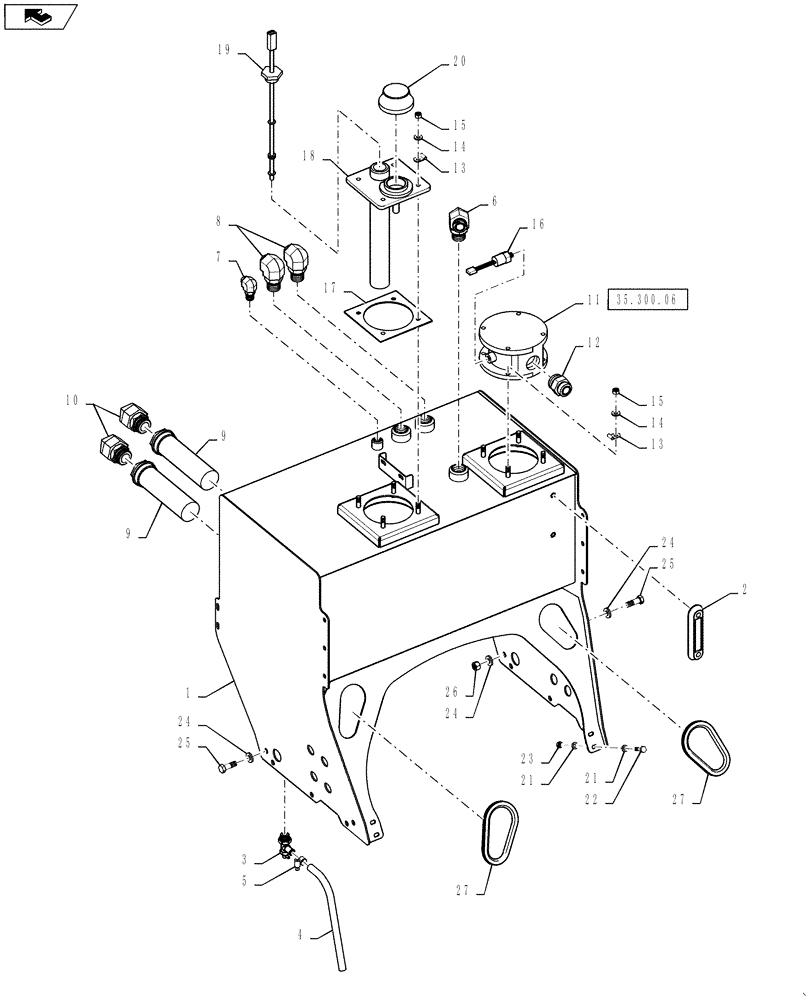

Схема запчастей Case IH 3330 - (35.300.05) - OIL TANK GROUP (35) - HYDRAULIC SYSTEMS
8
2
13
24
16
24
3
23
27
14
24
7
15
13
10
6
11
15
21
9
5
27
home
20
1
22
18
25
4
21
9
14
35.300.06
25
26
17
19
12

Артикул

Название

Примечание

Количество

1

87586592

TANK

Hydraulic

1шт.

2

BN322594

GAUGE

sight with temperature

1шт.

3

87105048

DRAINCOCK/TAP SUPPLY

Valve, Hydraulic

1шт.

4

129096A1

HOSE

Reservoir Drain

1шт.

5

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

1шт.

6

201-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

1шт.

7

BN302558

ELBOW

13/16-16 ORFS x 3/4-16 ORB

1шт.

8

BN302570

ELBOW

1-3/16-12 ORFS x 1-5/16-12 ORB

2шт.

9

BN303528

STRAINER ASSY.

32 MB X 20FB, 100

4шт.

10

BN302577

ELBOW

1-11/16-12 ORFS x 1-5/8-12 ORB

4шт.

11

87267807

HYDRAULIC OIL FILTER

Oil In-Tank SPX

1шт.

Refer to 35.300.06

1шт.

12

BN311052

FITTING

16 MOR 20 MB

1шт.

13

675162

WIRE CLAMP,6.3mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

14

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

16шт.

15

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

16шт.

16

87267808

PRESSURE SWITCH

25 psi N/C

1шт.

17

87272095

GASKET,3.17mm Thk

COVER PLATE

1шт.

18

87272099

PLATE

Temp Level

1шт.

19

BN323888

INDICATOR

Multi-Level And Temperature Oil Sender

1шт.

20

BN304339

VALVE

PRESS VALVE

1шт.

21

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

54шт.

22

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

4шт.

23

9991588

NUT,M8 x 1.25, Cl 8

27шт.

24

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm, HDN, DOR

20шт.

25

86980422

BOLT,Hex, M12 x 35mm, Cl 8.8

M12-1.75 X 35, HH, 8.8 DOR

10шт.

26

100038

NUT,M12 x 1.75, Cl 8

10шт.

27

1977624C1

SEAL,0.19mm Grip, 373.38mm OAL

TRIM EDGE

2шт.

Выбрано товаров: 28
