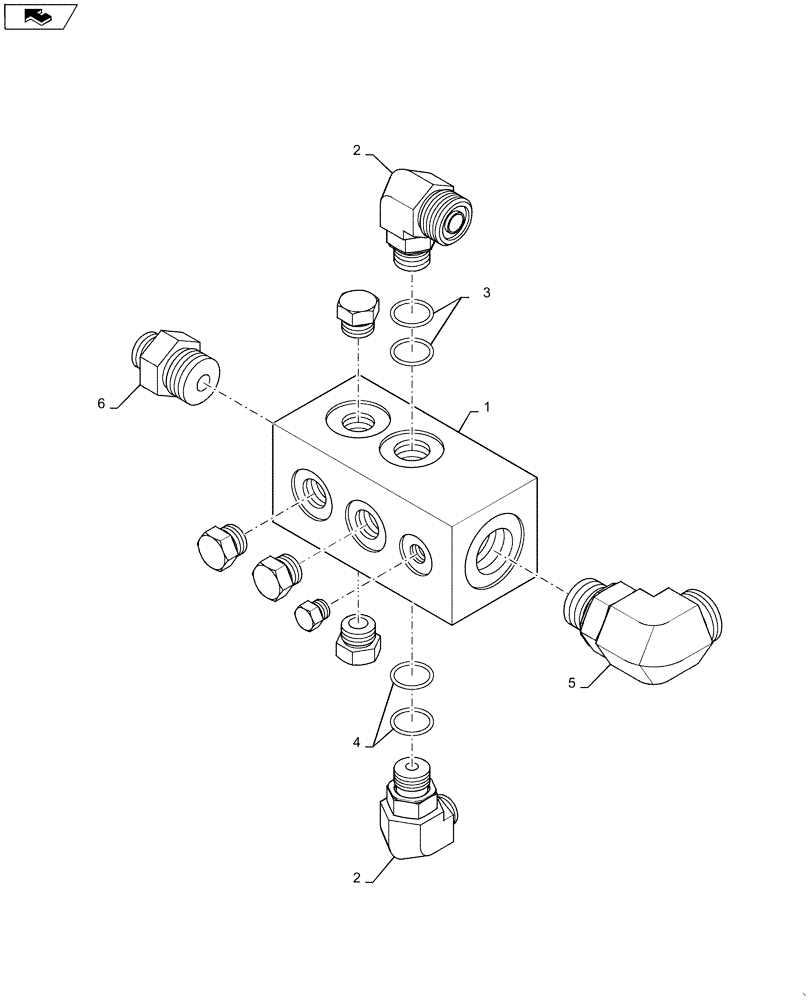

Запчасти Case IH 3330 (35.300.03) - PRESSURE COMP MANIFOLD (35) - HYDRAULIC SYSTEMS

1

BN326042

BODY

ALUMINUM

1шт.

2

BN302554

FITTING

11/16-16 ORFS x 3/4-16 ORB x 90 Deg

2шт.

3

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

4

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

5

BN302568

ELBOW

1-3/16"-12 ORFS x 1-1/16"-12 ORB

1шт.

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Not Shown, ORB For BN302652

1шт.

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Not Shown, ORFS For BN302652

1шт.

6

BN302652

FITTING

8 MOR 12MB

1шт.
