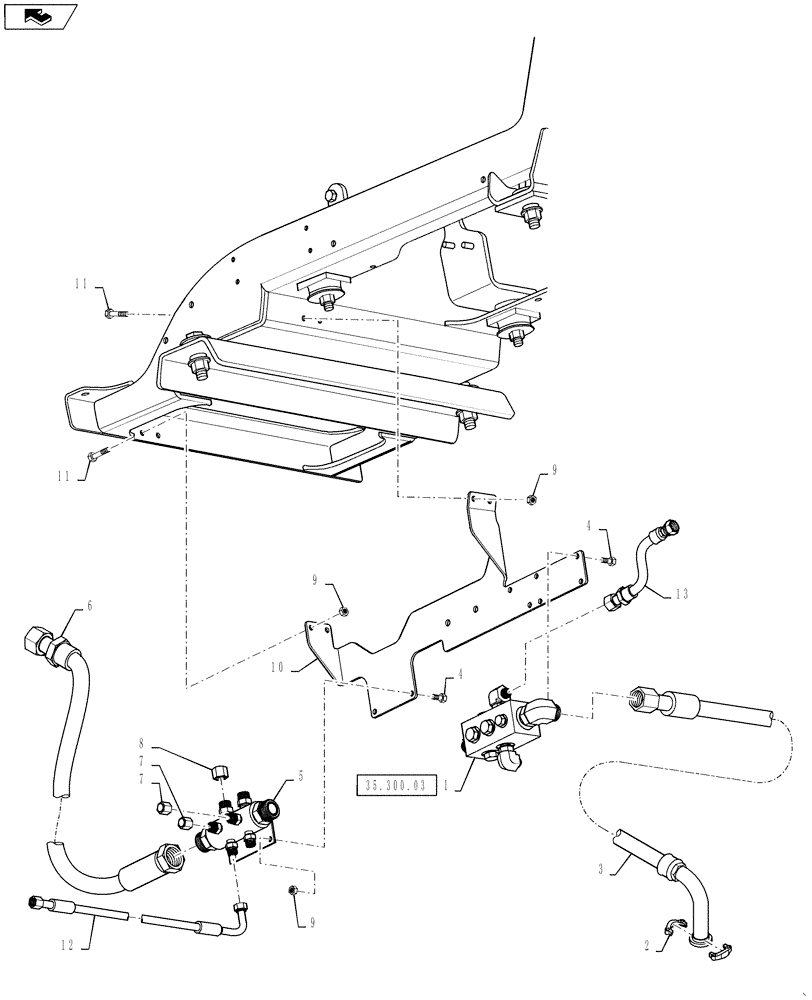

Запчасти Case IH 3330 (35.300.02) - MANIFOLD GROUP (35) - HYDRAULIC SYSTEMS

1

BN323902

MANIFOLD

PRESS. COMP

1шт.

Refer to 35.300.03

1шт.

2

BN316600

KIT

3/4 SPLIT FLGE CO 61

1шт.

86503302

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

For Ref 2

1шт.

3

87271562

HOSE,19.05mm ID x 2159mm L, SAE 100R17

1шт.

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

For Ref 3

1шт.

4

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

5

BN307639

MANIFOLD

HYD. RETURN

1шт.

6

BN307811

HOSE ASSY.

#16 X 35

1шт.

7

BN305426

CAP

6 FFOR

2шт.

8

BN305427

CAP

8 FFOR

1шт.

9

9991588

NUT,M8 x 1.25, Cl 8

6шт.

10

87271472

BRACKET, SUPPORTING

VALVES

1шт.

11

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

12

86986371

HOSE

8 x 154"

1шт.

13

87271214

HOSE

8 X 142, Not Illustrated

1шт.

14

342108A1

HOSE PROTECTION

Not Illustrated

1шт.

15

BN570007

STRAP

Not Illustrated

2шт.
