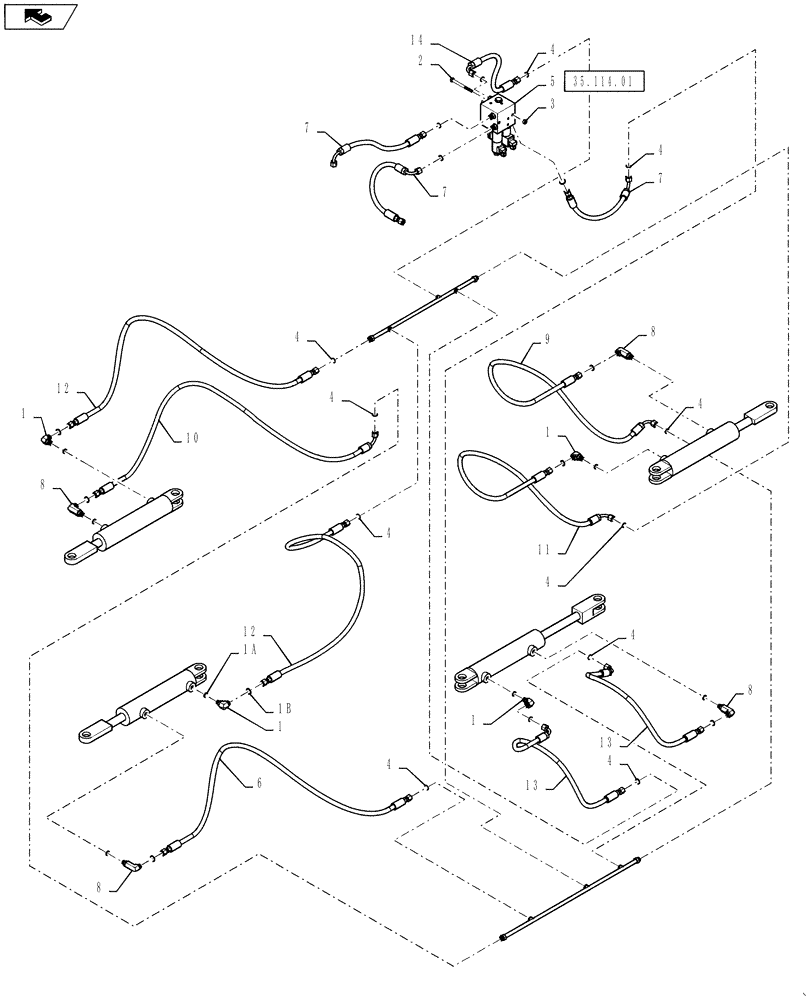

Запчасти Case IH 3330 (35.130.01) - STANDARD AXLE HYDRAULIC GROUP (35) - HYDRAULIC SYSTEMS

1

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

4шт.

1a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

1b

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

2

86980411

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

2шт.

3

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

4

BN305412

O-RING

FOR 6 FFOR

10шт.

5

87393150

CONTROL VALVE

2 BANK W/FTGS

1шт.

Refer to 35.114.01

1шт.

6

BN317622

HOSE ASSY.,9.53mm ID x 1498.6mm L, SAE 100R17

6 X 1498.6 MM

1шт.

7

BN307824

HOSE ASSY.

6 X 495.3 MM

4шт.

8

BN302419

ELBOW

6 MOR - 6 MB X 90 LL

4шт.

9

BN322523

HYDRAULIC HOSE

- 6 x 1397 MM

1шт.

10

BN320874

HOSE ASSY.,9.53mm ID x 1625.6mm L, SAE 100R17

-6 X 1625.6 MM

1шт.

11

BN313337

HOSE

-6 X 1270 MM

1шт.

12

BN307873

HOSE

-6 x 1548.4 MM

2шт.

13

BN322525

HOSE ASSY.

-6 X 1219.2 MM

2шт.

14

BN307823

HOSE ASSY.

1шт.
